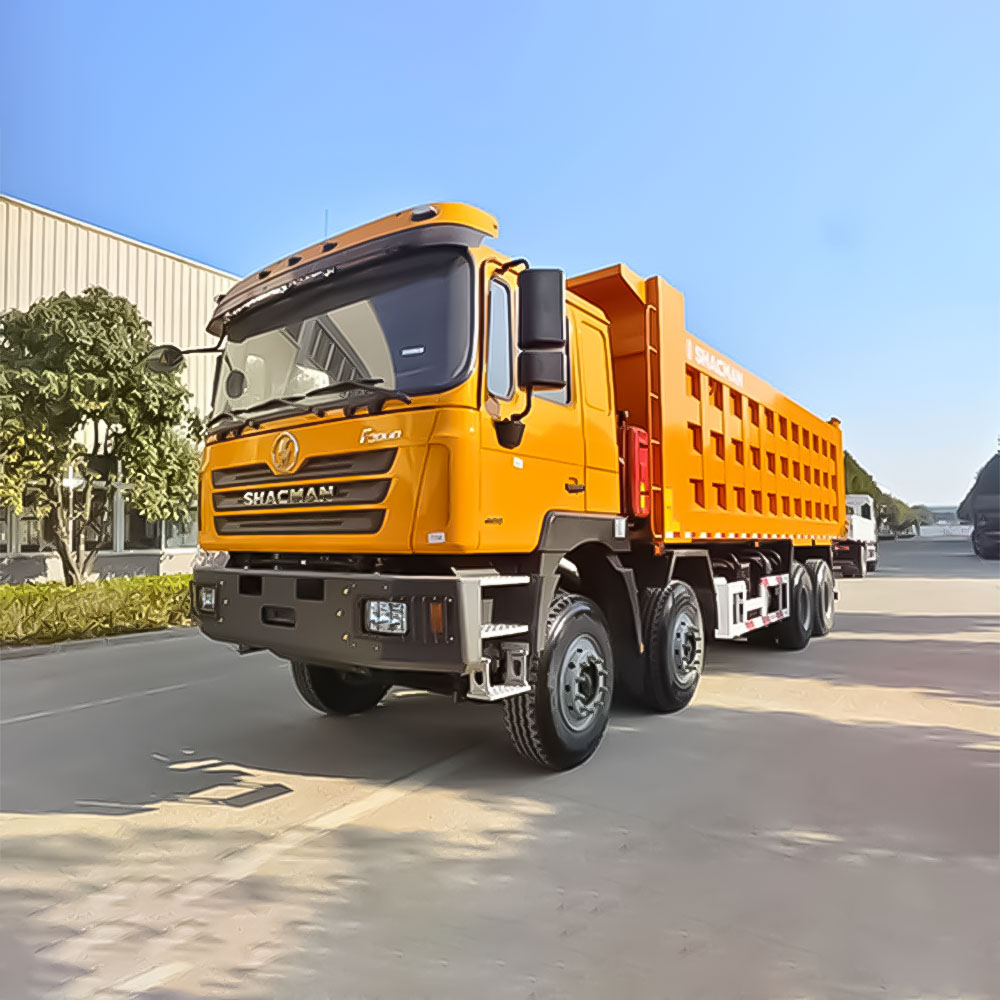

Shacman F3000 8×4 400HP Dump Truck

The Shacman F3000 8×4 400HP Dump Truck delivers superior power, stability, and durability for demanding mining, construction, and bulk material hauling operations. Equipped with a high-performance Weichai engine, reinforced chassis, and ergonomic cabin, it ensures efficiency, safety, and long-term reliability.

Detailed Product Description :

The Shacman F3000 8×4 400HP Dump Truck is engineered for heavy-duty operations, including bauxite mining, infrastructure projects, and large-scale construction sites. Powered by the Weichai WP12.400E201 Euro II engine, it generates 400HP and high torque at low RPM, ensuring smooth performance even on steep slopes and challenging terrains.

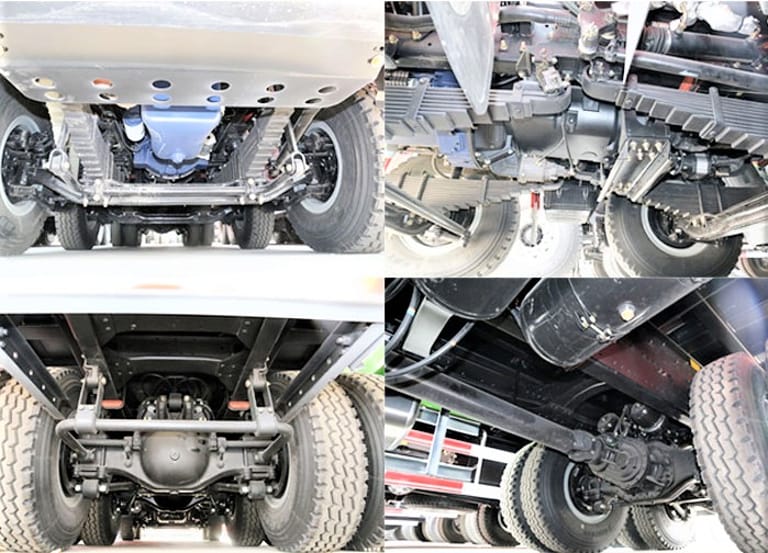

The truck features a triple-frame chassis, heavy-duty multi-leaf suspension, and MAN axles (front: 9.5T, rear: 16T), providing exceptional stability under full loads. Its 7800×2300×1700 mm high-strength steel cargo body, available in U-shape or square-shape, accommodates a variety of bulk materials. Optional hydraulic lifting systems, including HYVA or domestic alternatives, enable fast and efficient unloading.

Driver comfort and safety are prioritized in the F3000 mid-lengthened cabin, which includes air-conditioning, shock-absorbing seats, and intuitive controls. Fuel-efficient design optimizes power transmission, reduces operating costs, and extends service life.

Ideal for mining, construction, and heavy-duty infrastructure applications, the Shacman F3000 8×4 400HP combines durability, operational efficiency, and cost-effectiveness for global fleets.

Key Advantages:

• High-performance 400HP Weichai engine with excellent low-RPM torque

• Triple-frame chassis and reinforced steel cargo body for durability

• Heavy-duty MAN axles and multi-leaf suspension for superior stability

• Ergonomic F3000 cabin with air-conditioning and shock-absorbing seats

• Optional hydraulic lifting for fast and safe unloading

• Fuel-efficient design reduces operating costs

• Customizable cargo body shapes for diverse materials

More Details

Key Specifications:

Specification	Details
Brand	Shacman
Model	F3000 8×4 400HP Dump Truck
Engine	Weichai WP12.400E201, Euro II, 400 HP
Transmission	10JSD180 + QH50
Clutch	Φ430 Diaphragm Type
Drive Type	8×4
Front Axle	9.5T MAN
Rear Axle	16T MAN, final ratio 5.92
Suspension	Multi-leaf spring, heavy-duty
Tires	12.00R20, 12+1 spare, radial
Cargo Body Dimensions	7800×2300×1700 mm
Cargo Body Thickness	Bottom: 10 mm, Side: 8 mm
Hydraulic Lifting	Φ200 Before Lifting, optional HYVA/domestic
Cabin	F3000 mid-lengthened, single-sleeper, air-conditioning
Fuel Tank	400 L, metal
Wheelbase	1800 + 3975 + 1400 mm
Kerb Weight	15,500 kg
Applications	Bauxite transport, mining, construction, infrastructure

Production & Shipping:

ZW Group supplies the Shacman F3000 8×4 400HP Dump Truck as new units based on availability, and also offers professionally refurbished models customized to customer specifications. Each refurbishment follows a strict process: engine calibration, gearbox and axle servicing, hydraulic system inspection, chassis reinforcement, electrical diagnostics, cargo body repair, cabin restoration, and final road testing to ensure safety and reliability.

For international shipping, trucks are prepared using secure methods such as flatbed trailers, Ro-Ro vessels, or modular carriers. Reinforced tie-downs and protective padding are applied to critical components—including the cab, fuel tank, and hydraulic assemblies—to prevent damage in transit and ensure safe delivery to clients worldwide.
