Livestock Fence Semi Trailer
Open Design for Easy Loading and Unloading

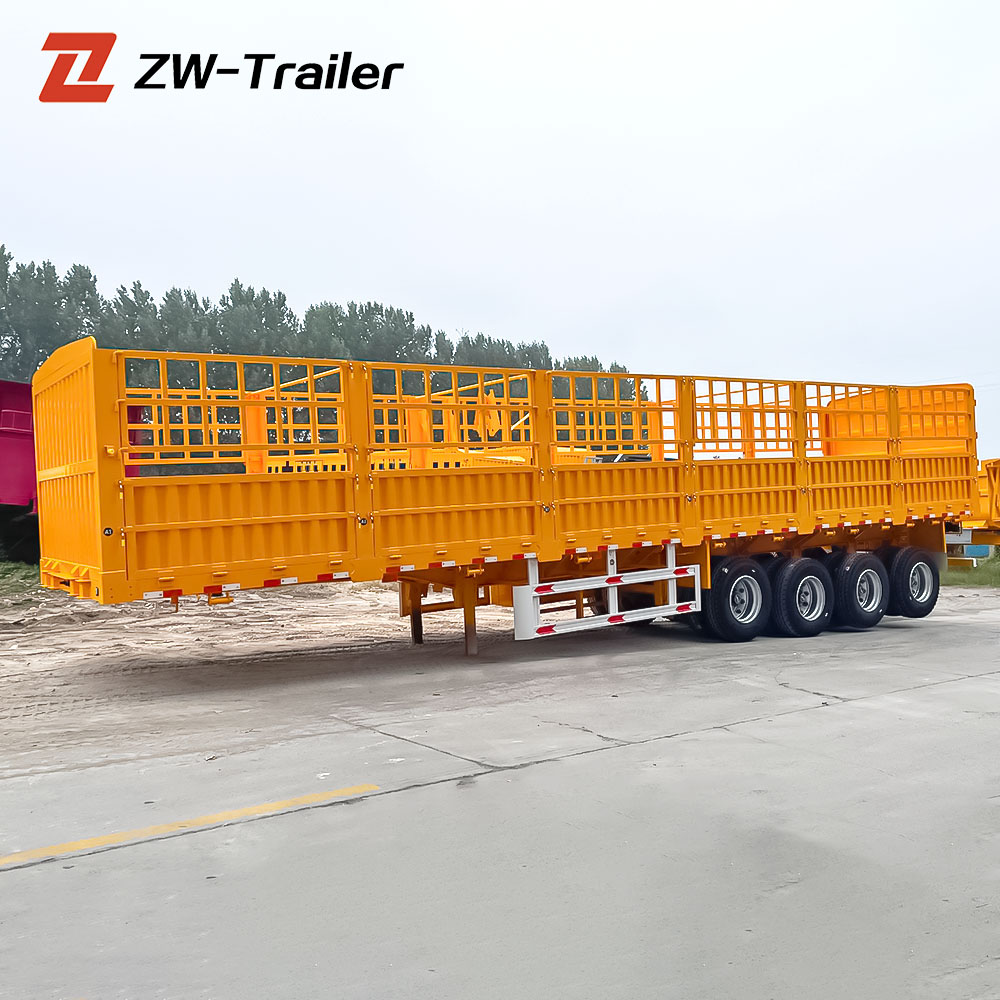

4-Axle 60 Ton Livestock Cargo Transport Fence Semi-Trailer
Heavy-Duty Livestock Transportation Solution – 60 T Capacity, Robust Suspension & Brake Systems, Built for Reliability and Longevity
Product Description
ZW Group 4-Axle 60 Ton Livestock Cargo Transport Fence Semi-Trailer sets a new benchmark in modern livestock transportation.
Crafted for farms, ranches, and large-scale livestock carriers, this 4-axle semi-trailer is engineered to deliver maximum payload, secure animal handling, and reliable operation across diverse terrains.
Its high-strength steel structure and corrosion-resistant fencing, combined with advanced suspension and premium finishing touches, ensure smooth, safe, and long-lasting performance.
Whether you're shipping cattle, sheep, pigs, or goats, the ZW trailer brings efficiency on the road and peace of mind at every stage of travel.
Key Features
General Advantages
Heavy-Duty Paint & Anti-Corrosion Finish – Multi-layer primer and epoxy-polyurethane topcoat provide UV resistance, scratch protection, and superior corrosion defense in harsh weather conditions.
High-Strength G500 Steel Chassis – Welded using automated robotic systems for consistent weld quality, high fatigue life, and excellent torsional rigidity.
4-Axle Configuration – Distributes weight evenly, reliably supports 60-ton payload, and ensures stable handling even under full load.
Enhanced Braking System – Full air-brake system with ABS (Anti-lock Braking System) maintains control during emergency braking and in unpredictable road conditions.
2. Suspension & Running Gear
Heavy-Duty Suspension – Multi-leaf parabolic springs with reinforced shackles; optional air-ride suspension available for superior ride comfort and reduced impact on livestock.
Reliable Axles – Hot-forged beam axles rated for high vertical load, sealed bearings for long maintenance intervals, and optional axle lift for flexibility.
3. Wheels & Tires
Premium Steel Rims & Semi-Radial Tires – 12.00R20 or 11.00R22.5 tires from reputable brands (double-belt, heat-resistant, deep tread) deliver excellent traction and durability under heavy weights and long-distance haulage.
Spare Wheel Configuration – Mounted rear or side carriers for quick access during roadside needs.
4. Livestock-Specific Advantages
Corrosion-Resistant Fence Panels – Galvanized and powder-coated fence rails with secure locking gates and mesh infill prevent escape and withstand repeated wash-downs.
Ventilation-Optimized Design – Slatted fence panels with adjustable upper and lower vents to maintain proper airflow and ensure animal comfort.
Safety Gates & Access Ramps – Channelled gating system with safety latches for loading/unloading control, optional fold-down ramp for smooth livestock movement.
Non-Slip Flooring – Removable, non-slip hardwood or rubber-mat flooring with drain grooves and built-in drainage holes to maintain hygiene and reduce slips.
5. Detail-Oriented Enhancements
LED Visibility Lighting – Energy-efficient road lights, side markers, and reflective stripes improve visibility at night and in poor weather.
Toolbox & Storage – Under-chassis storage boxes for loading ramps, chains, cleaning tools, and PPE.
Customization Options – Clients can request additional features such as side access doors, weatherproof tarp covers, branding decals, and paint colors.
Manufacturing Process
Material Preparation – G500 tensile steel sourced, cut via CNC plasma cutting for precision.
Frame Welding – Automated robotic welding forms the main box: high-strength, uniform weld seams for long-term durability.
Axle & Suspension Integration – Axles matched with suspension units by heavy-duty assembly line. Bearings pre-lubricated; brakes pre-adjusted.
Floor & Fence Assembly – Flooring installed, fixed with sealed fasteners. Fence panels bolted with anti-vibration hardware; gates and hinges precision-fitted.
Surface Treatment & Painting – Shot-blasting to remove contaminants, epoxy primer applied, then polyurethane topcoat sprayed for lasting finish.
Final Assembly – Wiring harness for lights, toolboxes, spare wheel mountings, branding decals attached.
Quality Checks – Each trailer undergoes full inspection: weld integrity, paint adhesion, suspension alignment, and functional testing.
Specification
Parameter | Specification |
|---|---|
Trailer Type | 4-Axle Livestock Cargo Fence Semi-Trailer |
Load Capacity | 60 Metric Tons (60,000 kg) |
Number of Axles | 4 |
Frame Material | G500 High Tensile Steel |
Chassis Design | Robotic Welded Box-Section |
Suspension Type | Multi-Leaf Parabolic Springs (optional Air Ride) |
Axles | Hot-Forged Beam Axles with Sealed Bearings |
Brake System | Full Air Brake with ABS |
Tires | 11.00R22.5 or 12.00R20 Semi-Radial, Brand Options |
Wheels | Heavy-Duty Steel Rims |
Flooring | Hardwood or Rubber-Mat, Non-Slip, Removable |
Fence Panels | Galvanized + Powder-Coated Steel Mesh Rails |
Access Gates | Double-Swing with Safety Latch, Optional Ramp |
Lighting | LED Road Lights, Side Markers, Reflective Tape |
Paint Finish | Epoxy Primer + Polyurethane Topcoat |
Additional Options | Toolbox, Branding, Tarp, Side Access Doors |
Frequently Asked Questions
Q1: What livestock types is this trailer suited for?
A: Designed primarily for cattle, sheep, pigs, goats, and combined livestock—any farm animal that needs secure, ventilated transport. Custom rail spacing can be adapted per species.
Q2: Do you offer a shorter or longer version?
A: Yes—we can configure 3-axle or 5-axle variants, as well as modified lengths, to meet regulatory requirements or payload preferences.
Q3: What are the lead times for production and delivery?
A: Standard production lead time is approximately 30–45 days from order confirmation. Delivery times depend on destination—typically 15–35 days via Ro-Ro or container shipping.
Q4: Can I request branding or color customization?
A: Absolutely. We welcome logo placement, custom paint colors, and branding options to align with your company identity. Please include artwork files with order.
Q5: What maintenance is required?
A: Monthly: check tire pressure, wheel bearings, brake adjustments, and gate hinges. Annually (or every 50,000 km): full suspension inspection, paint touch-up, and lubrication of moving parts.
Q6: Are parts readily available?
A: Yes. We maintain an inventory of high-wear components (springs, bearings, tires, lights, hinges). We also provide fast-ship options for replacements.
Q7: Is driver/operator training available?
A: Yes. We can arrange remote or on-site training in loading procedures, brake safety, and routine inspections—ensuring safe and efficient use.
