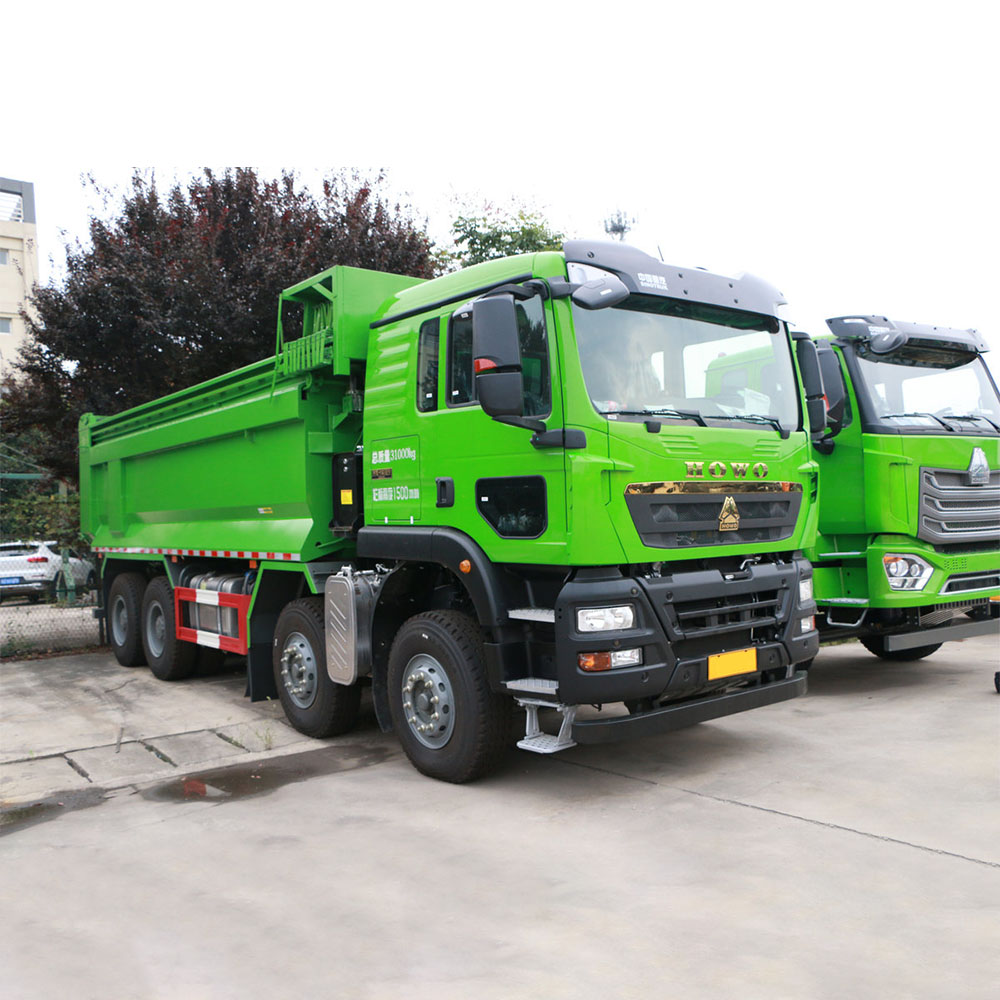

HOWO TX 430HP 8X4 Dump Truck
Heavy-Duty Construction & Mining Dump Truck with High Payload and Euro 6 Engine
HOWO TX 430HP 8X4 Dump Truck
The HOWO TX 430HP 8X4 6.5m Dump Truck combines reliable power, durability, and fuel efficiency for demanding construction and mining projects. Its reinforced steel dump body, advanced suspension, and 430HP Euro 6 engine ensure high performance and operational safety.
Detailed Product Description :
Designed for challenging construction and mining environments, the HOWO TX 430HP 8X4 6.5m Dump Truck features a Weichai WP12.430E62 11.6L 6-cylinder engine delivering 430 horsepower and 2100Nm of torque, compliant with China VI (Euro 6) emission standards.
The truck incorporates a robust 12-speed HW19712L manual transmission and an 8X4 drivetrain with a 5.26 rear axle ratio, balancing power, traction, and fuel efficiency. Its 6.5-meter high-strength steel dump body accommodates heavy materials with a rated payload of 15.37 tons and a total gross vehicle weight of 31 tons.
A reinforced chassis with advanced 4/4/12 leaf spring suspension ensures stability and durability under full load, while the 12 rugged 12.00R20 18PR tires provide superior traction across uneven terrains. The wide 2-person cabin, ergonomic controls, and optimized visibility prioritize driver comfort and operational safety.
The truck’s strong front (6.5–7 tons) and rear (17.5 tons) axles, along with a hydraulic self-dumping system, improve load management and unloading efficiency. Overall, the HOWO TX 430HP 8X4 6.5m Dump Truck delivers high productivity, low emissions, and reliable performance for professional fleet operations.
 |  |
 |  |
Key Advantages:
Powerful Weichai WP12.430E62 Euro 6 engine with 430HP and 2100Nm torque
Reinforced 6.5m steel dump body for high payload capacity
Durable 8X4 drivetrain with 12-speed manual transmission
Advanced suspension and strong axles for stability on rough terrains
Ergonomic cabin design for driver comfort and operational safety
Efficient hydraulic self-dumping system reduces unloading time
Key Specifications:
Specification | Details |
|---|---|
Model | ZZ3317V326GF1 |
Engine | Weichai WP12.430E62, 430HP, Euro 6 |
Displacement | 11.6L |
Cylinders | 6 |
Torque | 2100Nm @ 1000–1400rpm |
Transmission | Sinotruk HW19712L, 12-speed manual |
Drive Type | 8X4 |
Rear Axle Ratio | 5.26 |
Fuel Type | Diesel |
Gross Vehicle Weight | 31 tons |
Payload Capacity | 15.37 tons |
Cargo Box Size | 6.5m × 2.3m × 1.5m |
Cargo Box Type | Self-dumping, rectangular |
Wheelbase | 1950+3225+1350 mm |
Vehicle Dimensions (L×W×H) | 9.78 × 2.55 × 3.55 m |
Front Axle Load | 6.5–7 tons |
Rear Axle Load | 17.5 tons |
Suspension | 4/4/12 leaf springs |
Tires | 12 × 12.00R20 18PR |
Cab Capacity | 2 persons |
Cab Width | 2280 mm |
Production & Shipping:
ZW Group offers the HOWO TX 430HP 8X4 6.5m Dump Truck as both new units (depending on availability) and expertly refurbished vehicles tailored to customer requirements. Each refurbishment process includes comprehensive engine calibration, transmission and axle inspection, hydraulic system servicing, frame reinforcement, dump body repair, cabin interior restoration, electrical system checks, and final road testing to ensure operational reliability and safety.
For export, trucks are carefully prepared using flatbed trailers, Ro-Ro vessels, or modular carriers, with reinforced tie-downs and protective padding applied to critical components such as the cab, fuel tank, and hydraulic systems. This ensures safe delivery and immediate deployment in international markets.
