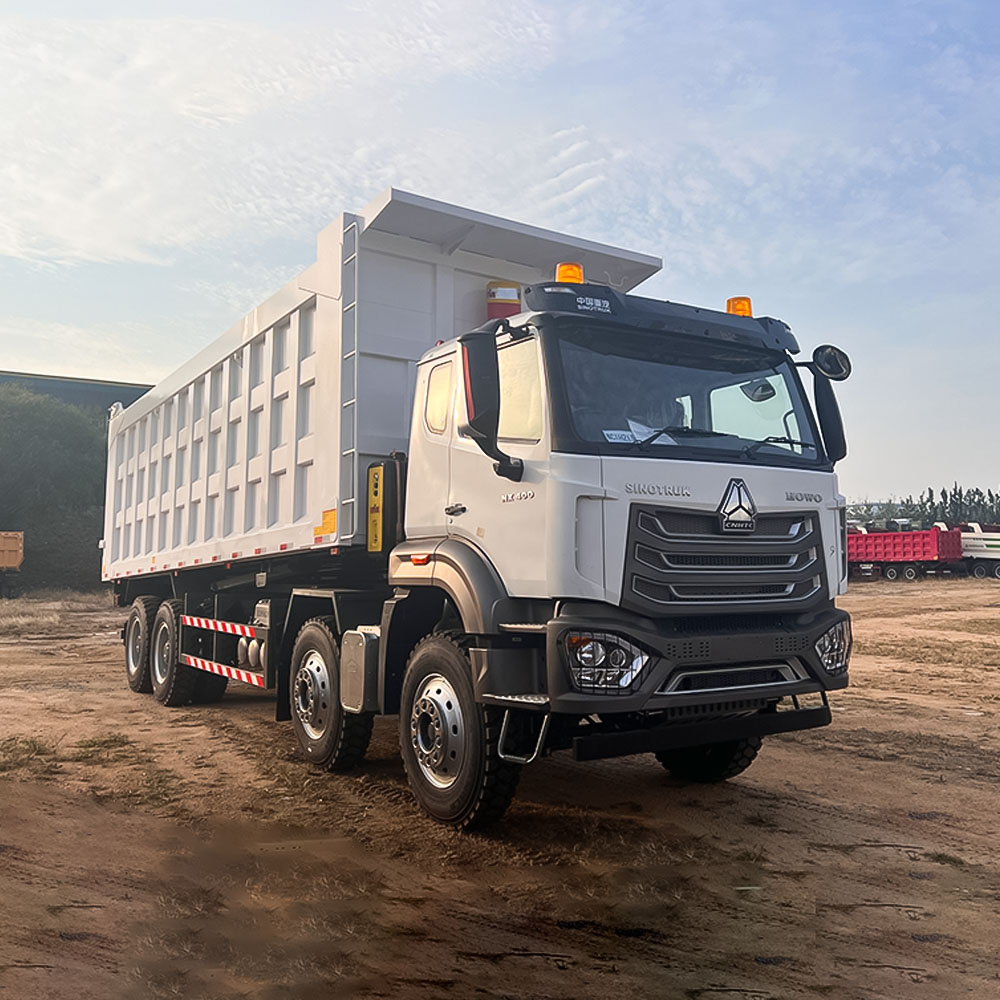

HOWO NX 400HP 8X4 Dump Truck
High-Strength 8X4 Mining & Construction Tipper for Heavy-Duty Operations
HOWO NX 400HP 8X4 Dump Truck
The HOWO NX 400HP 8X4 Dump Truck is built for extreme workloads, equipped with a powerful 400HP Weichai engine and a reinforced 7.4-meter high-strength steel cargo box. Designed for large-scale construction, mining, and quarry applications, it offers excellent durability, smooth operation, and superior load-handling performance across harsh terrains.
 |  |
Detailed Product Description :
The HOWO NX 400HP 8X4 Dump Truck is developed for operators who require consistent power, high payload capability, and dependable year-round performance. Powered by the Weichai WP10.400E22 engine, the truck delivers strong output and high torque, ensuring efficient hauling even when operating in demanding environments such as desert regions, steep construction sites, and mining zones.
Its 8X4 drivetrain enhances traction and stability, enabling the truck to maneuver confidently on rugged surfaces and uneven terrain. The model features a reinforced high-strength steel chassis, heavy-duty suspension, and a durable 7.4-meter dump body, all engineered to reduce maintenance frequency and prolong service life.
The HOWO NX cabin focuses on driver comfort with ergonomic seating, integrated A/C, and intuitive dashboard controls. These features significantly minimize fatigue, especially during long work shifts. Safety is supported by ABS braking, strengthened axles, and a rigid frame structure that improve braking performance and load stability.
Built to maximize productivity, the HOWO NX 400HP 8X4 Dump Truck is a reliable solution for projects in Saudi Arabia, UAE, Africa, and Southeast Asia, where operators require long-lasting durability, fuel efficiency, and exceptional loading performance.
 |  |
Key Advantages:
Powerful 400HP Weichai engine for demanding heavy-duty tasks
8X4 drivetrain improves stability on off-road and rough construction areas
Reinforced 7.4m dump body crafted from high-strength steel
Durable chassis and suspension designed for long operational life
Comfortable cabin with air conditioning and ergonomic seats
Enhanced safety system, including ABS and reinforced axles
High payload capacity, ideal for mining, earthmoving, and infrastructure development
Low maintenance cost, suitable for international heavy-load markets
Key Specifications:
Specification | Details |
|---|---|
Engine Model | Weichai WP10.400E22 (or equivalent) |
Power | 400 HP |
Drive System | 8X4 |
Front Axle Capacity | 9.5T |
Rear Axles Capacity | 16T |
Tire Size | 12.00R20 |
Dimensions (L×W×H) | 9735 × 2490 × 3790 mm |
Wheelbase | 1800 + 3575 + 1400 mm |
Dump Body Size | 7400 × 2300 × 1500 mm |
Body Material | High-strength steel |
Fuel Tank | 300 Liters |
Cabin | Ergonomic, A/C, multifunction controls |
Payload Capacity | Large payload for mining & construction |
Safety | ABS, reinforced axles |
Production & Shipping:
ZW Group supplies the HOWO NX 400HP 8×4 Dump Truck in both new condition (subject to stock availability) and fully refurbished options. Every refurbishment project follows a strict quality restoration workflow that includes complete mechanical inspection, engine optimization, transmission and axle servicing, hydraulic lifting system adjustment, chassis alignment, dump-body reinforcement, electrical circuit testing, and cabin interior renewal. Each unit is thoroughly evaluated through load simulation and road testing to ensure it meets high performance and durability standards prior to shipment.
For international delivery, trucks are secured using professional export-loading solutions such as Ro-Ro transport, flatbed trailers, or bulk carrier loading. Critical areas—including the cabin, hydraulic components, lighting system, and fuel tank—are protected with reinforced straps and impact-absorbing padding. This careful preparation ensures that every HOWO NX 400HP truck arrives in perfect condition and is ready for immediate operation upon reaching global markets.
