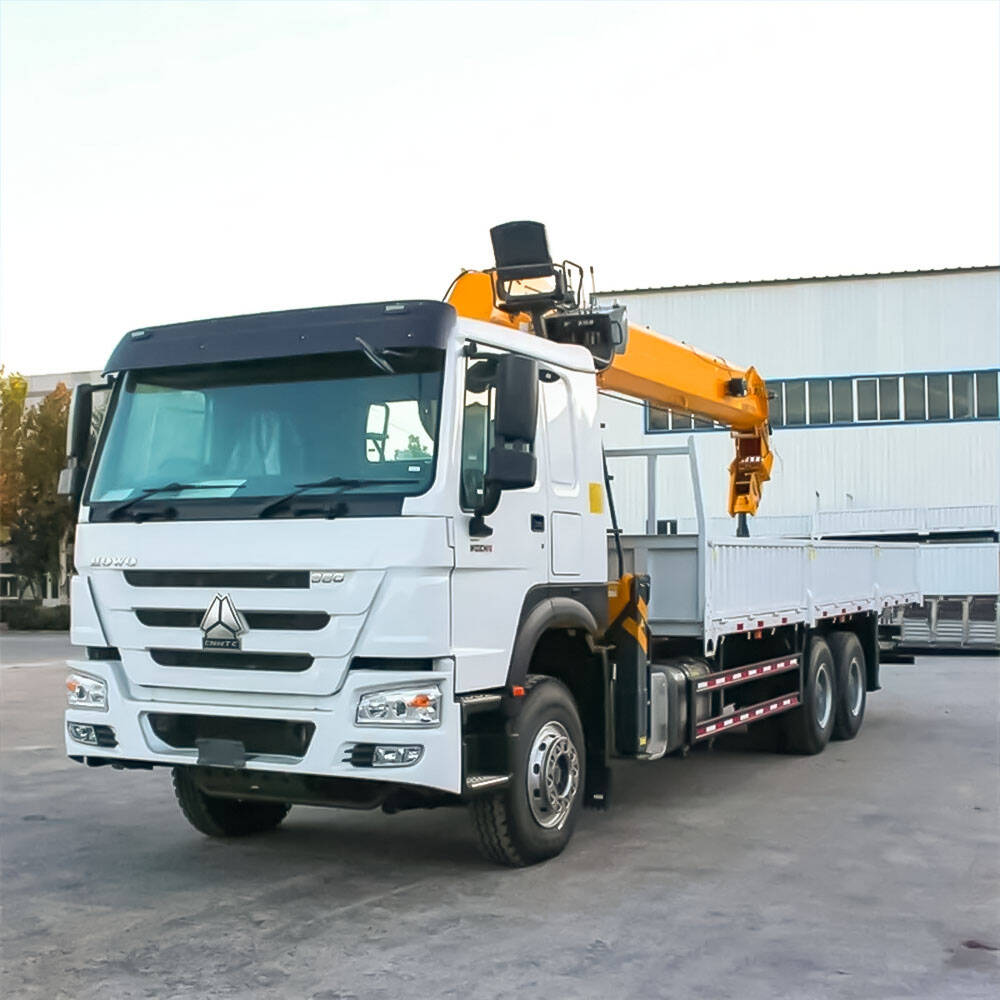

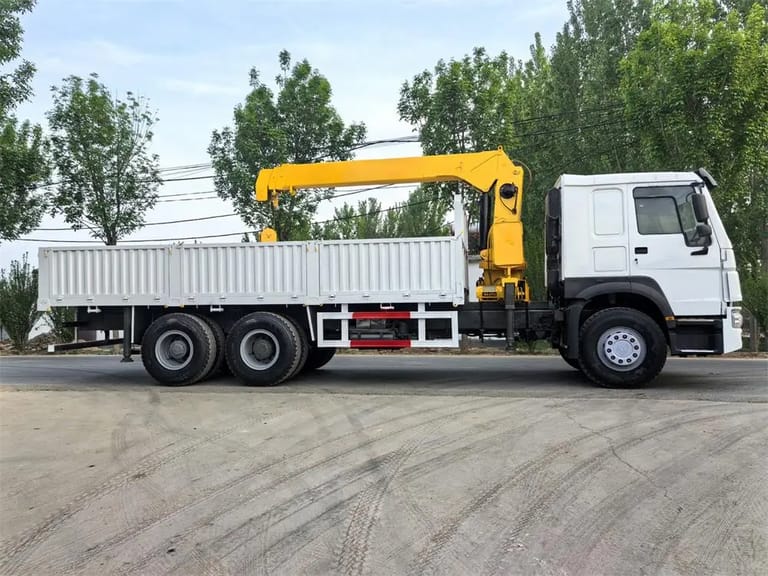

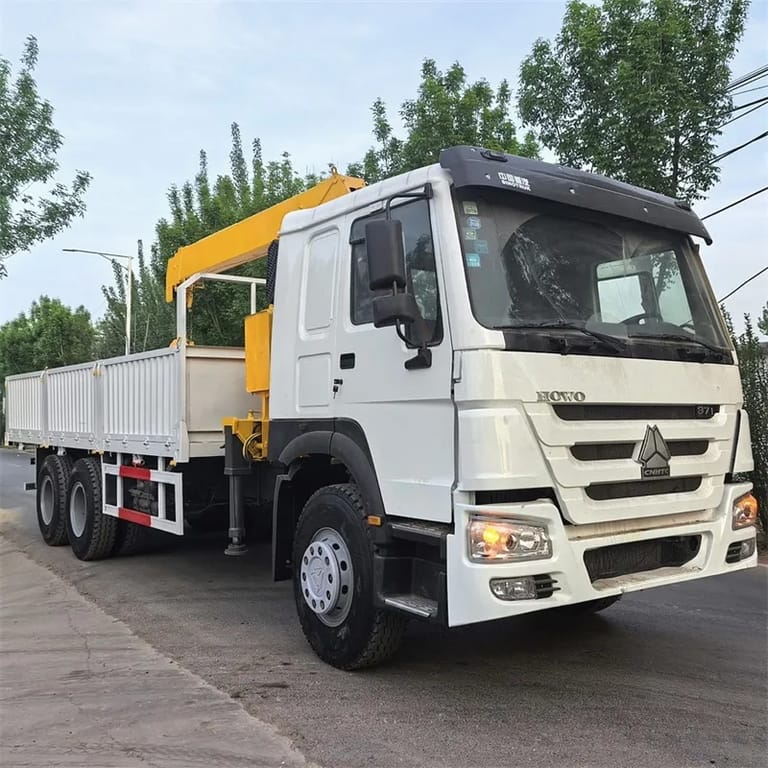

HOWO 6×4 20 Ton Truck Crane
Reliable 20T Truck-Mounted Crane for Construction and Logistics
HOWO 6×4 20 Ton Truck Crane
The HOWO 6×4 20 Ton Truck Crane combines powerful lifting capability with reliable transport performance. Built on a durable 6×4 HOWO chassis and equipped with a 20-ton hydraulic crane system, it ensures efficiency, safety, and stability for demanding construction, mining, and industrial lifting operations.
Product Description:
The HOWO 6×4 20 Ton Truck-Mounted Crane is a versatile lifting and transport solution designed for heavy-duty projects. Powered by a 336–400 HP diesel engine and paired with the HW19710 10-speed manual gearbox, this model offers strong torque, high fuel efficiency, and reliable performance under tough working conditions.
Equipped with a 20-ton crane system, available in both straight arm and folding arm configurations, it provides flexible lifting options for different applications. The hydraulic system supports full 360° rotation, fast response, and precise operation. Additional features such as overload protection, anti-sway design, and optional radio remote control further enhance safety and productivity.
The truck is built with a reinforced HOWO chassis, hydraulic stabilizers, and heavy-duty suspension, ensuring stability even under maximum load. Its high-strength flatbed body (6500×2300×600 mm) ensures balanced cargo handling, while the ZF steering system and 12.00R22.5 tires provide smooth maneuverability on both highways and rough terrain.
Compared to standalone mobile cranes, this truck-mounted version integrates both transportation and lifting, reducing equipment costs and improving efficiency for construction, mining, logistics, and industrial projects. With customization options including crane brands (XCMG, Palfinger, Chengli), drive orientation (LHD/RHD), and crane capacity (5–20 tons), it can be tailored to meet diverse operational needs.
Key Advantages:
Flexible Crane Options – Straight arm or folding arm designs, up to 20 tons capacity.
Strong Powertrain – 336–400 HP diesel engine with HW19710 gearbox ensures durability.
Full Rotation – 360° hydraulic rotation with smooth, precise handling.
Safety Features – Overload protection, anti-sway system, over-wind alarm.
Stable Operation – Reinforced chassis, heavy-duty suspension, and 4-point hydraulic stabilizers.
Integrated Transport & Lifting – Saves costs by combining cargo transport with crane functions.
Customizable – Multiple crane brands, configurations, and drive options available.
Operator Comfort – Ergonomic cabin with air conditioning, optional remote control operation.
Key Specifications:
Specification | Details |
|---|---|
Drive Type | 6×4 all-wheel drive |
Engine Power | 336–400 HP |
Transmission | HW19710, 10F & 2R |
Crane Type | Folding arm / Straight arm (optional) |
Max Lifting Capacity | 5t / 10t / 15t / 20t |
Max Crane Moment | 25 T.M |
Rotation | 360° full hydraulic |
Hydraulic Pressure | 26 MPa |
Oil Flow | 63 L/min |
Cargo Body Size | 6500 × 2300 × 600 mm |
Axles (Front/Rear) | VGD95 / HC16 |
Suspension | Reinforced leaf spring |
Tires | 12.00R22.5 radial |
Steering | ZF8118 power steering |
Stabilizers | 4-point hydraulic with rear support legs |
Fuel Tank | 400 L (aluminum alloy) |
Curb Weight | 14,525 kg |
Max Speed | 102 km/h |
Emission Standard | Euro II |
Delivery Time | 15–20 days |
Supply Capacity | 10,000 units/month |
