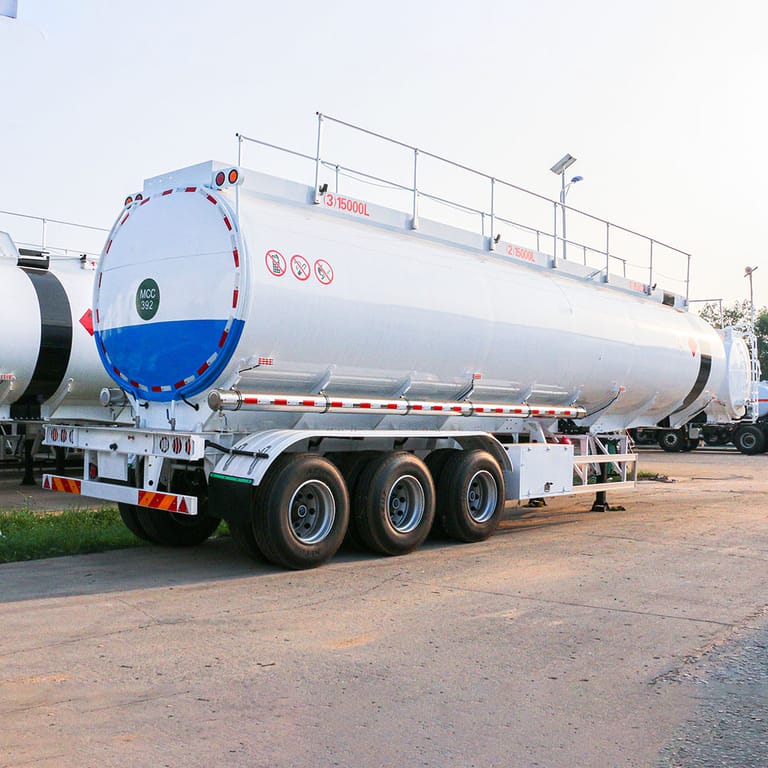

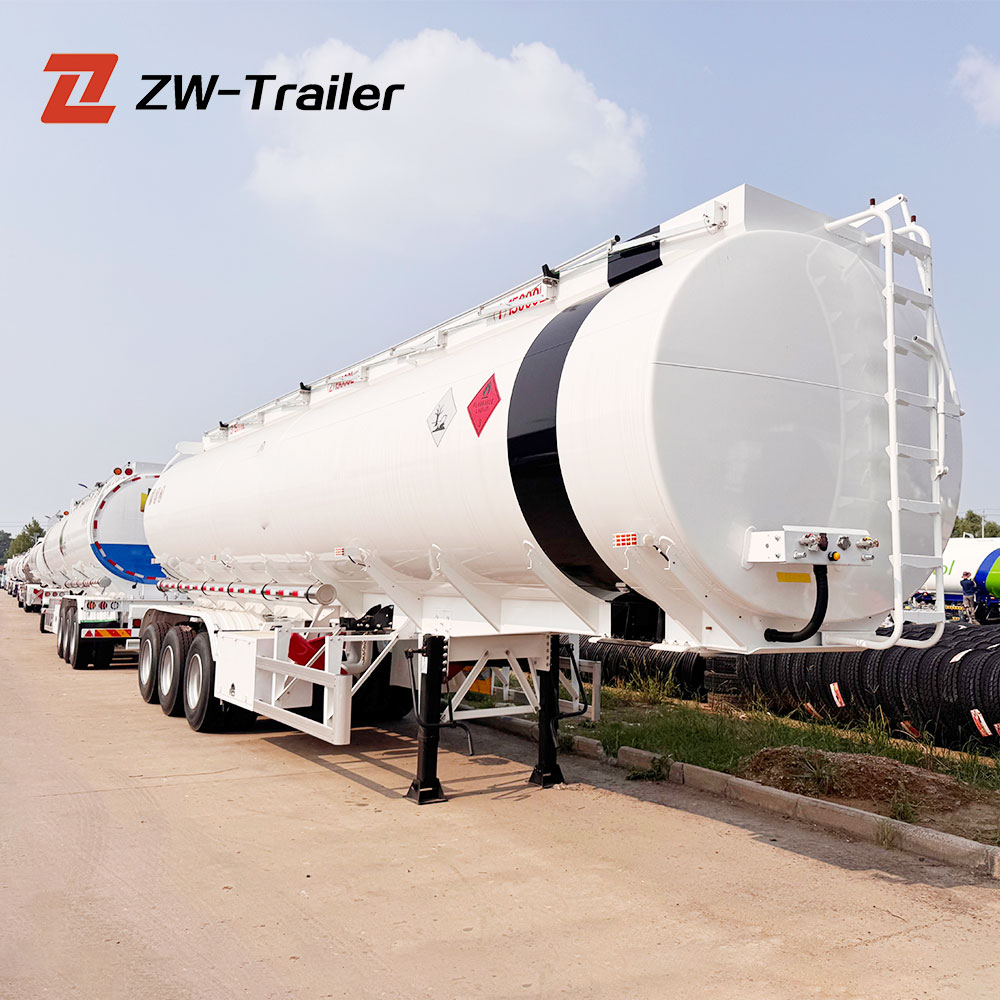

Carbon steel Oil tanker semi trailer
Heavy-Duty 3 Axle Configuration
3 Axle Carbon Steel Tanker Semi Trailer – Reliable Fuel Transport Solution
Introduction
ZW Group 45000-liter fuel tanker is a semi-trailer designed for the bulk transportation of flammable liquids.
The tank body is constructed from high-tensile Q345B carbon steel, known for its exceptional strength-to-weight ratio and resistance to deformation and corrosion.
The tank's elliptical cross-section is a deliberate engineering choice, lowering the center of gravity to enhance stability during transit, especially when negotiating turns and uneven terrain.
The internal structure is reinforced with a series of anti-wave baffle plates, strategically placed to dampen the surge of liquid, thereby minimizing dynamic loads on the chassis and improving overall vehicle control.
The trailer is available in both a 3-axle configuration for standard payloads and a 4-axle version for increased load capacity and optimized weight distribution, catering to diverse regional regulations and operational requirements. Every component, from the main beam to the smallest valve, is selected to create reliable system.
Product Features: A Detailed Examination of Technical Superiority
General Advantages
Adaptable axle setup for regulatory compliance across regions, with fuel savings and high resale value.
Painting and Finishing
Electrostatic powder coating for uniform coverage and scratch resistance, searchable as "long-lasting paint on 45000L fuel tankers."
Axles and Braking System
Hybrid FUWA/BPW axles with optional liftable fourth axle, ABS/EBS for safety. Fits "advanced axles in 3/4 axle diesel tankers."
Tires and Wheels
Dual options: 12R22.5 for 3 axles or 385/65R22.5 for 4, from premium brands. Ideal for "tire options in customizable oil tanker trailers."
Suspension System
Mixed mechanical/air suspension for versatility, enhancing comfort. Aligns with "suspension advantages in carbon steel fuel tankers."
Extras: Fire extinguishers, toolboxes, and LED signals.
 |  |
|---|
Parameters
Specification | Parameter |
Model | ZW-3 axle fuel tanker trailer |
Overall Dimension | 11500mm 2500mm 3800mm |
Tank Capacity | 45,000 Liters (45 CBM) |
Tank Material | High-Tensile Carbon Steel Q235/Q345 5mm thickness for body, 6mm for end plates |
Compartments | 1 to 8 compartments (customizable) with anti-surge baffles |
Axles | 3 x 13 Ton, BPW / FUWA /ZW brand (optional) |
Suspension | Heavy-duty Mechanical Suspension (Air Suspension optional) |
Tires | 12R22.5 Tubeless, 12 units + 1 spare tire |
King Pin | 2" or 3.5" JOST brand, bolted type |
Landing Gear | JOST 28-ton, two-speed manual operation |
Braking System | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; |
Manhole Cover | 500mm explosion-proof aluminum alloy manhole covers |
Discharge Valve | 4-inch API standard discharge valve |
Bottom Valve | Pneumatic emergency bottom valve (foot valve) |
Pipeline | 4-inch steel pipe |
Accessories | One standard tool box, fire extinguishers, spare tire carrier, anti-static tape |
Painting | Sandblasted, anti-corrosion primer, polyurethane topcoat |
Production Process & Quality Control
Our manufacturing process combines cutting-edge technology with skilled craftsmanship. It includes:
CNC Plasma Cutting: Precise cutting of steel plates for accuracy.
Automatic Plate Rolling: Forming the tank body with consistent curvature.
Advanced Seam Welding: Automated welding ensures strong, leak-proof seams.
Tank Assembly & Baffle Installation: Perfect alignment and welding of compartments and baffles.
Chassis Construction: Building a robust frame to support the tank.
Non-Destructive Testing (NDT): X-ray and ultrasonic tests on weld seams to guarantee integrity.
System Installation: Fitting of axles, suspension, braking, and piping systems.
Painting & Finishing: Multi-layer coating for maximum protection.
Load & Safety Testing
Before leaving our factory, every fuel tanker undergoes rigorous testing:
Hydrostatic Test (Water Pressure Test): The tank is filled with water and pressurized to detect any potential leaks.
Air Tightness Test: Ensures all valves and connections are perfectly sealed.
Weld Seam Inspection: NDT ensures there are no hidden defects in the welds.
Braking and Stability Road Test: A final check on the trailer's performance and safety on the road.
Customer Testimonials
"We added five ZW Group 45,000L fuel tankers to our fleet last year. The reliability is outstanding, and the low maintenance on the BPW axles has saved us significant downtime. A truly professional product." - Logistics Manager, Saudi Arabia
"The stability of this tanker is impressive, even when fully loaded on winding roads. Our drivers feel much safer. The paint quality has also held up incredibly well against the harsh sun." - Fleet Owner, Zimbabwe
FAQ
Q1: Can the number of compartments be customized?
A1: Absolutely. We can customize the tank with 1 to 8 compartments based on your need to transport different types of fuel simultaneously.
Q2: What is the lead time for an order?
A2: Standard production time is typically 25-30 working days after order confirmation and deposit.
Q3: Do you provide spare parts?
A3: Yes, we maintain a comprehensive inventory of spare parts and can ship them globally with fast delivery.
Q4: What is the warranty on the fuel tanker trailer?
A4: We offer a standard 12-month warranty on the main components, including the tank body and chassis, against manufacturing defects.
Q5: Can you accommodate specific tire or axle brand requests?
A5: Yes, we have strong partnerships with major component suppliers and can equip the trailer with your preferred brands like Michelin tires or SAF axles, subject to availability and potential cost adjustments.
