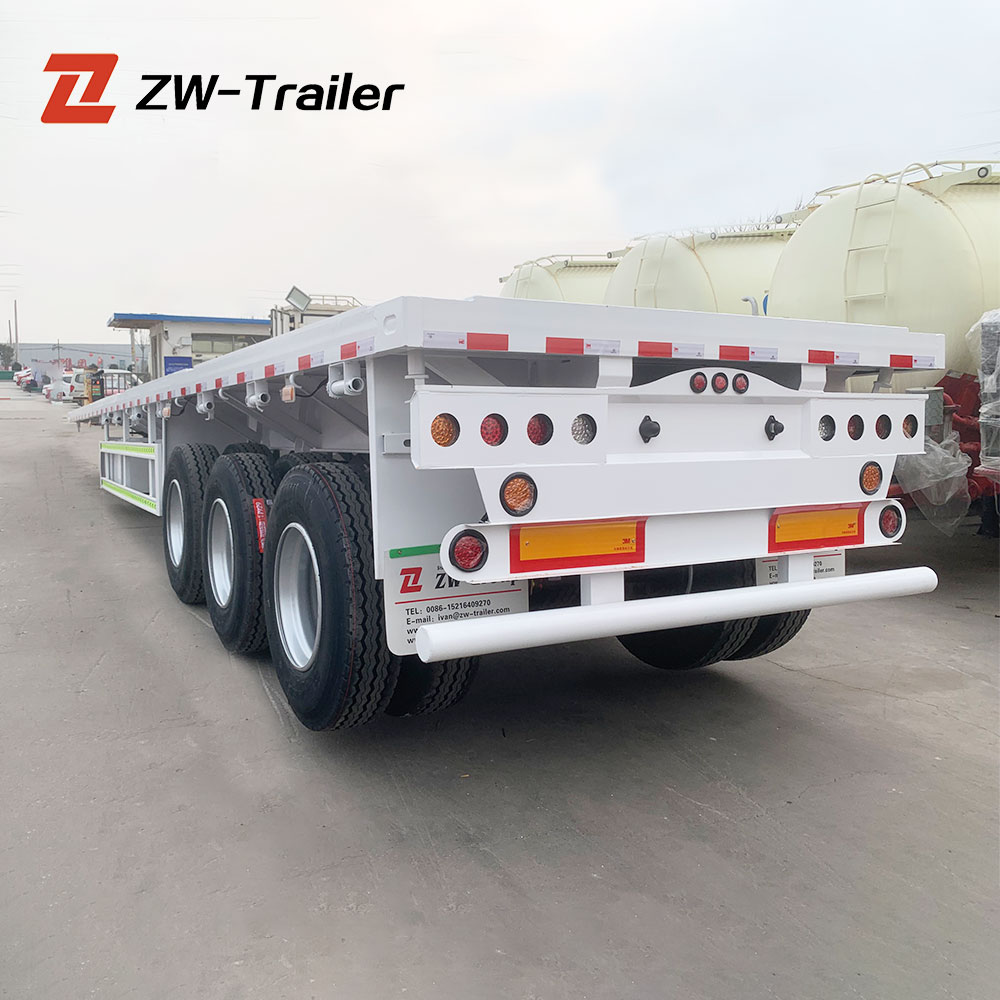

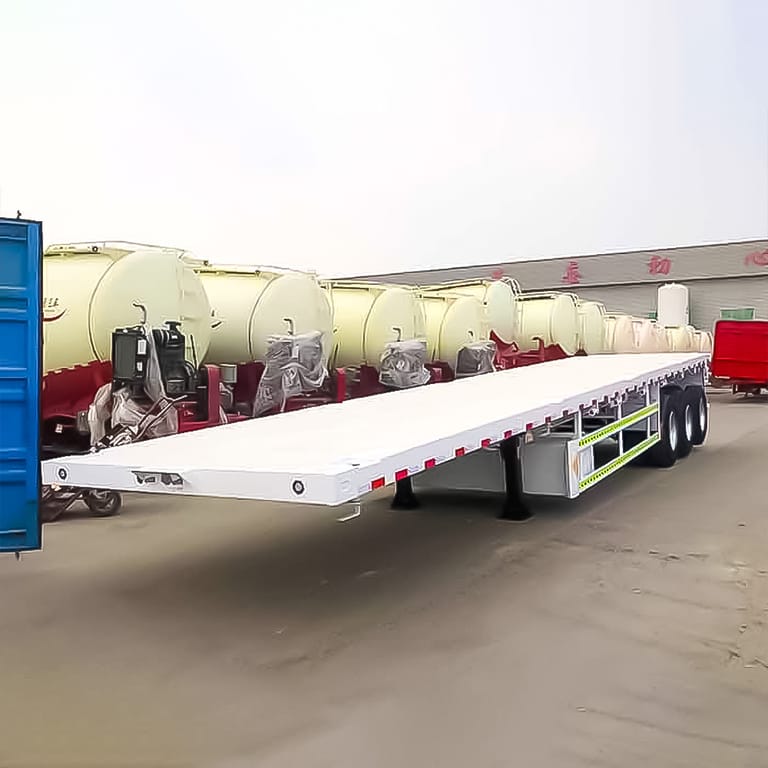

60 Ton Flatbed Truck Trailer
Optimized Steel Structure with Lightweight Chassis
Container Shipping Cargo Transport 60-Ton Flatbed Semi-Trailer
Durable, Heavy-Duty 60 Ton Flat-Bed Semi-Trailer by ZW Group – Perfect for 40-Foot Container Transport and Exceptional for Intermodal Freight Efficiency
Product Description
Experience robust and reliable freight transport with the ZW Group 3-Axle 40-ft Container Shipping Cargo Transport 60-Ton Flatbed Semi-Trailer. Engineered for efficiency and longevity, this heavy-duty flatbed trailer is your trusted partner for intermodal container shipping, logistics operations, and over-the-road haulage.
Built with top-grade materials, precision-welded chassis, and industry-leading safety features, this semi-trailer is optimally designed to handle 40-ft containers or general heavy cargo up to 60 tons.
Ideal for containerized transport, inter-modal logistics, flatbed freight, and industrial load applications, the ZW Group flatbed trailer stands out in durability, reliability, and cost-efficiency.
Product Features
Heavy-Duty 60 Ton Payload Capacity
Supports heavy container loads for efficient freight operations.3-Axle Stability & Durable Suspension System
Optimal axle distribution enhances load balance and road grip.40-ft Container Compatibility
Built-in bottom locks and twist locks make it fully compatible with standard 40-foot containers.High-Strength Steel Frame
Fabricated with ASTM Grade A high-tensile steel for longevity and resistance to stress and fatigue.Anti-Corrosion Surface Treatment
Shot-blasted frame with premium epoxy primer followed by polyurethane top coat ensures long-term durability against rust.Welding Precision & Structural Integrity
CNC-guided welding ensures consistent weld strength and alignment across the main beam structure.Reliable Air Brake System & Safety Lighting
Equipped with ABS brake system, LED lighting, reflectors, and optional side underrun protection.Efficient Loading & Maintenance Design

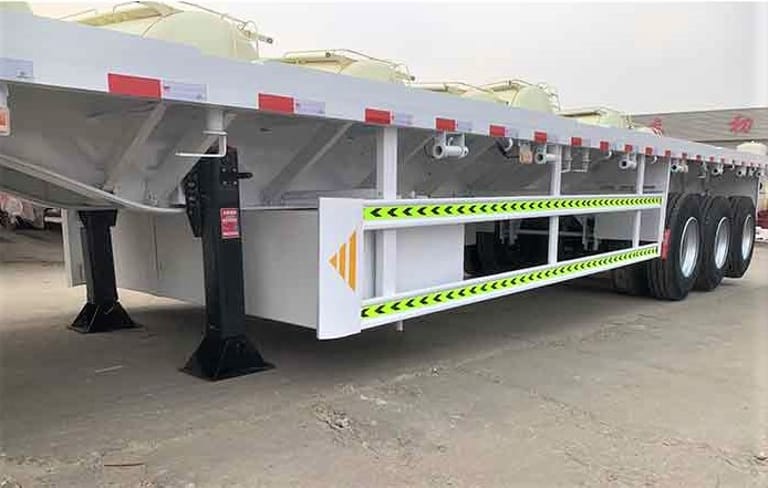

Straightforward access to landing gear, spare tire, and greasable hinges enables easy upkeep.Custom Options Available
Configurable options include drop-deck variants, raised decks, pintle hitch, side rails, and special paint colors to match corporate branding.
Specification
Parameter | Specification |
|---|---|
Model | ZW-3Axle -Flatbed semi trailer |
Payload Capacity | 60 ton |
Axle | 3 × 16 ton heavy-duty bogie axles |
Suspension | Multi-leaf parabolic springs with shock absorbers |
Deck Length | 12,192 mm (40 ft) + optional toolboxes |
Deck Width | 2,550 mm (approx. 8 ft 4 in) |
Main Beam | Two I-beam welded longitudinal steel members |
Material | High-tensile steel ASTM Grade A |
Surface Finish | Primer + polyurethane paint (custom colors) |

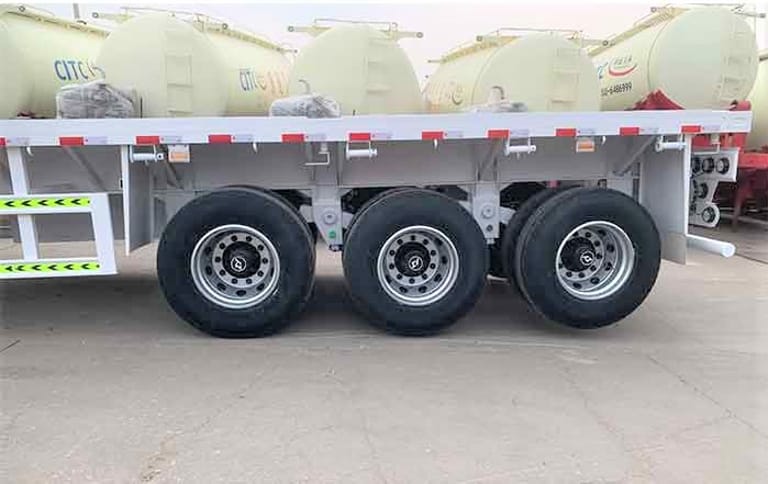

Wheel / Tire | 8 × 22.5″ steel wheels with heavy-duty tires |
Braking System | Full‐air ABS with EBS optional upgrade |
Lighting | LED tail, stop, side, and marker lights |
Optional Features | Drop-deck, side rails, toolboxes, branding livery |
Load Testing & Certification
Static Load Test
Simulate 60 ton payload distribution; observe structural stress, deformation, and safe deformation zones.Dynamic Road Test
Fully loaded trailer towed at highway speeds under various conditions. Brake performance, steering alignment, and suspension response are recorded for analysis.Certifications
ISO 9001 Quality Management System
ADR vehicle compliance (if applicable)
Individual test report detailing deflection metrics, brake stopping distances, and fatigue life calculation.
 |  |
|---|---|
 |  |
Frequently Asked Questions
Q1: What is the maximum load capacity of this flat-bed trailer?
A: The trailer is rated for a maximum 60-ton payload, compatible with standard 40-ft container loads.
Q2: Are 20-ft containers supported?
A: Yes, the flatbed can carry a 20-ft container centered—or dual-block the container using twist lock adapters.
Q3: Can the trailer be customized with branding or colors?
A: Absolutely. We offer a full palette of paint options, custom decals, and company logo placements.
Q4: How is the trailer protected from corrosion?
A: We use shot blasting followed by epoxy primer and a polyurethane topcoat to ensure long-term rust resistance, even in harsh marine environments.
Q5: What types of braking systems are available?
A: Standard supply includes full-air ABS. Electronic Braking System (EBS) with Adaptive Cruise Coordination can be optionally installed.
Q6: Do you provide spare parts or toolkits?
A: Yes, optional toolboxes with basic spares like landing gear handles, brake shoes, fuses, and grease guns can be supplied.
Conclusion
ZW Group 3-Axle 40-ft Container Shipping Cargo Transport 60-Ton Flatbed Semi-Trailer delivers a perfect combination of strength, reliability, customizability, and compliance.
With thoughtful production standards—from high-tensile steel frames, precision welding, rigorous load testing, to corrosion-resistant coatings—this flatbed trailer supports your toughest containerized freight needs.
Whether you're managing intermodal logistics, heavy industrial transport, or fleet operations, this trailer is engineered for performance, peace of mind, and long-term serviceability.
