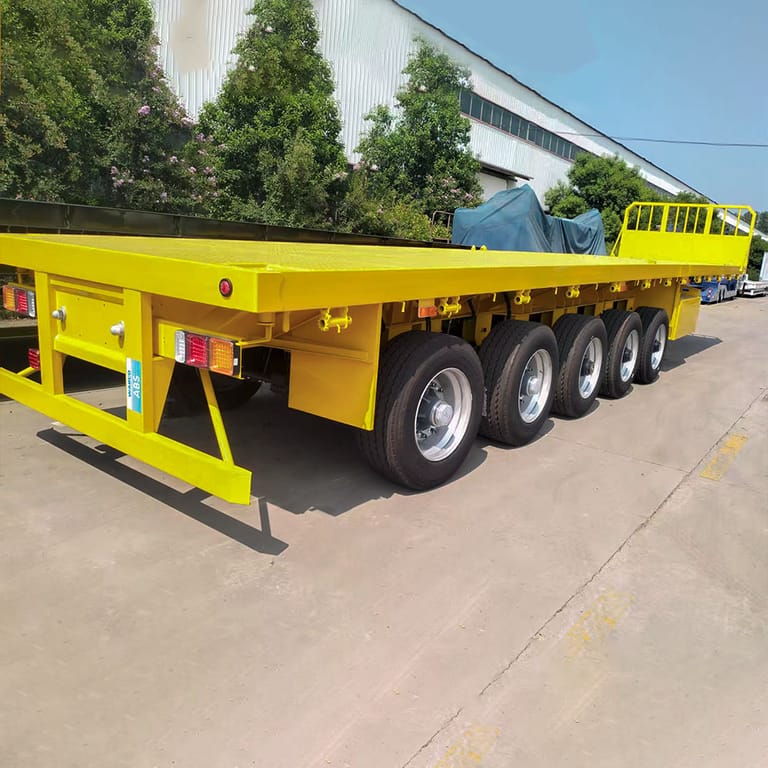

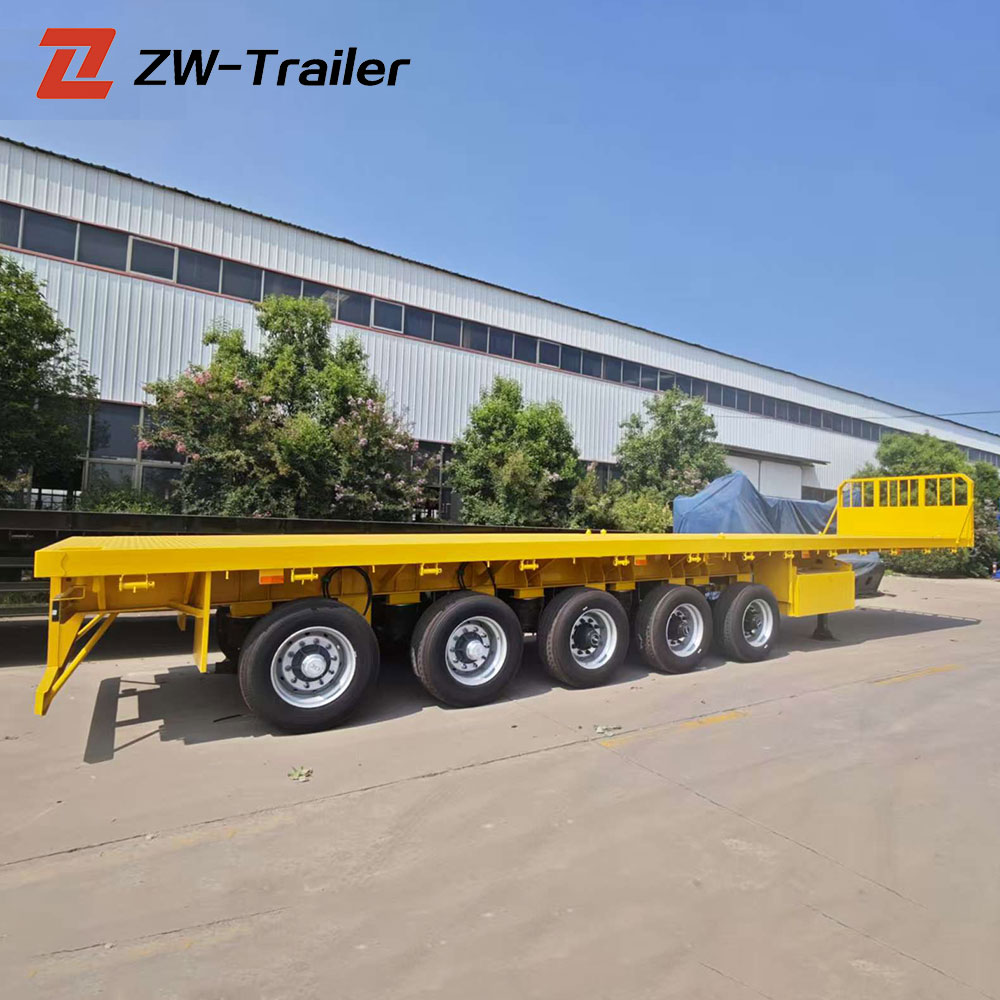

5 Axle Cargo Flatbed Semi Trailer
Heavy-Duty Flatbed Semi Trailer for Container Transport
5 Axle Container Shipping Flatbed Semi Trailer with Front Plate
Product Overview
ZW Group 5 Axle Container Shipping Flatbed Semi Trailer with Front Plate is a premium heavy-duty transport solution engineered for international logistics, bulk cargo hauling, and container transportation.
Built with extra strength, high stability, and extended durability, this semi trailer is widely used for 20ft, 40ft, and 45ft container shipping, oversized machinery transportation, and general cargo logistics.
Designed with five reinforced axles and a protective front plate, this flatbed semi trailer delivers higher payload capacity, improved road safety, and better adaptability to different road conditions.
Whether operating in African mining regions, Middle Eastern deserts, or Southeast Asian ports, ZW Group flatbed trailers ensure long-lasting reliability, reduced maintenance costs, and optimized efficiency for fleet operators.
Key Features & Advantages
Premium Anti-Rust Painting – High-quality sandblasting and electrophoresis primer coating with polyurethane paint for long-lasting corrosion resistance.
Heavy-Duty Axles – ZW axle manufacturers, ensuring high load-bearing performance and low maintenance requirements.
Durable Tires – Equipped with anti-skid, wear-resistant tires (12R22.5 / 315/80R22.5 optional) to ensure stability on highways and rough terrains.
Reinforced Suspension System – Advanced mechanical or air suspension with heavy-duty springs for improved shock absorption and cargo safety.

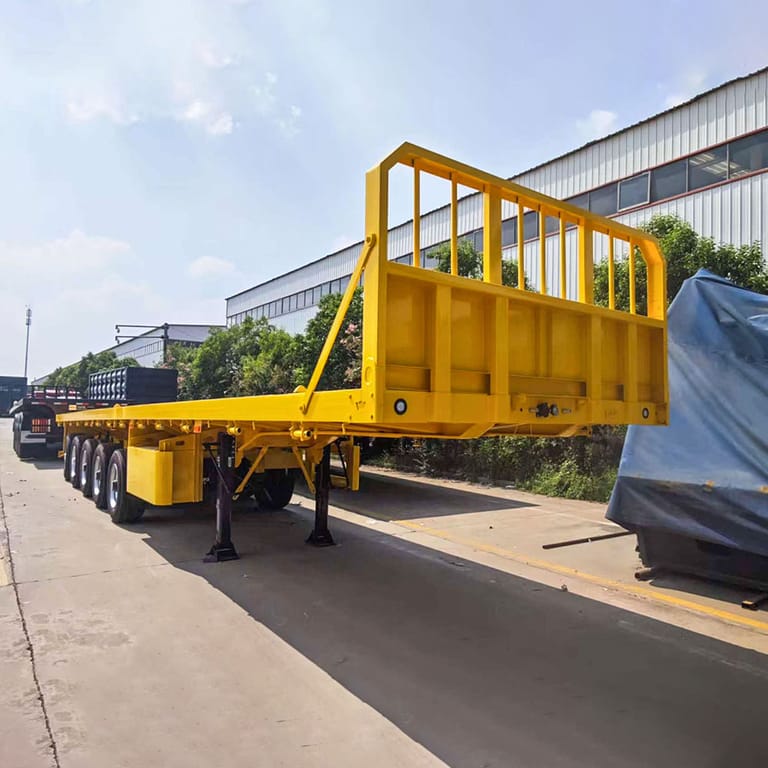

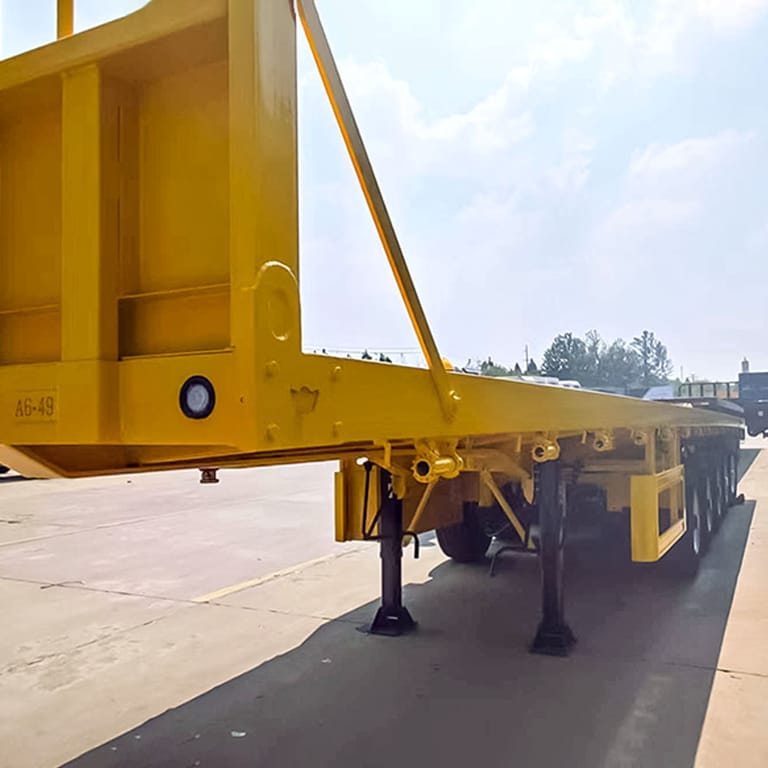

Front Plate Design – Provides extra support for cargo, prevents shifting, and improves container alignment during transport.
Universal Compatibility – Designed for 20ft, 40ft, 45ft containers, bulk cargo, steel coils, construction materials, and oversized loads.
 |  |
|---|
Specifications
Parameter | Details |
|---|---|
Trailer Type | 5 Axle Container Shipping Flatbed Semi Trailer with Front Plate |
Axles | 5 axles, 13T/16T each (FUWA/BPW /ZW ) |
Dimensions | 12,500–16,500mm length × 2,500mm width × 1,550mm height |
Front Plate Height | 1,200–1,600mm (customizable) |
Payload Capacity | 80–120 tons depending on configuration |
Suspension | Mechanical spring suspension / air suspension optional |
Tires | 12R22.5 / 315/80R22.5 / 385/65R22.5, 16–20 pieces |
Brake System | Dual-line pneumatic with WABCO ABS (optional) |
King Pin | 2” / 3.5” JOST standard |
Landing Gear | 28T JOST standard |
Material | Q345B/T700 high-strength steel |
Container Locks | 12 sets twist locks for 20ft/40ft/45ft containers |
Painting | Sandblasting + anti-rust primer + polyurethane top coat |
ZW Manufacturing Excellence: Precision Production Process
ZW Group adheres to a stringent, multi-stage production protocol to guarantee the highest quality and safety standards for every container flatbed semi-trailer. Our facility utilizes state-of-the-art automated machinery for precision manufacturing.
Quality Assurance: Load Testing and Inspection
Quality is the cornerstone of the ZW Group. Every 5-Axle Flatbed Semi-Trailer undergoes rigorous quality checks before leaving the factory.
Dynamic and Static Load Testing
Our trailers are subjected to simulated overload and stress tests that exceed the maximum rated capacity. This static load test ensures the main beam and suspension system can safely handle extreme weights without permanent deformation. Dynamic tests are also performed to evaluate the trailer's behavior under driving conditions, including severe braking and cornering.
Critical Component Inspection
Welding Integrity: Non-destructive testing (NDT) is used to inspect key stress-point welds (e.g., kingpin, main beam joints) for internal defects.
Axle Alignment: Precision laser alignment tools verify that all 5 axles are perfectly parallel and perpendicular to the main beam, crucial for reducing rolling resistance and tire wear.
Braking Performance: The pneumatic brake system is fully pressure-tested and calibrated, ensuring the WABCO valve and air chambers deliver reliable, synchronized braking across all axles.
Paint Thickness & Adhesion: The multi-layer paint finish is electronically tested to verify the specified Dry Film Thickness (DFT) and adhesion strength for guaranteed anti-corrosion performance.
Frequently Asked Questions
Q1: What is the primary advantage of a 5-axle flatbed over a standard tri-axle (3-axle) model?
A: The 5-axle configuration allows for a much higher legal payload capacity by distributing the weight more effectively across the trailer, which is crucial in regions or countries with strict axle load limits and Gross Vehicle Weight (GVW) regulations.
Q2: Is the front plate (headboard) removable?
A: While the front headboard is a permanent, welded safety feature on our standard model for maximum rigidity and safety, we can offer a bolt-on or semi-removable design upon special request, depending on specific regulatory or operational needs.
Q3: Can this trailer transport both 40ft and 20ft containers?
A: Yes. Our trailer is equipped with 12 sets of ISO-standard twist locks strategically placed to securely lock 1x40ft, 1x45ft, or 2x20ft containers simultaneously.
Q4: What kind of steel is used for the main structure, and why?
A: We primarily use Q345B and Q700 high-tensile structural steel. These materials offer superior strength, rigidity, and weldability compared to standard carbon steel, which allows us to build a more durable trailer with a relatively lighter tare weight, directly translating to an increased usable payload.
Q5: What is the standard warranty on the ZW Group flatbed trailer?
A: ZW Group typically offers a 2-year warranty on the main beam structure and a standard warranty of 6 to 12 months on key components like the axles and landing gear. Full warranty details are provided at the time of purchase.
Q6: Can the suspension be upgraded to Air Suspension?
A: Absolutely. While our standard model features robust mechanical leaf spring suspension, we offer Air Suspension systems as an upgrade.
Air suspension provides a smoother ride, which is ideal for transporting sensitive cargo, and allows for easier height adjustment (lifting/lowering).
