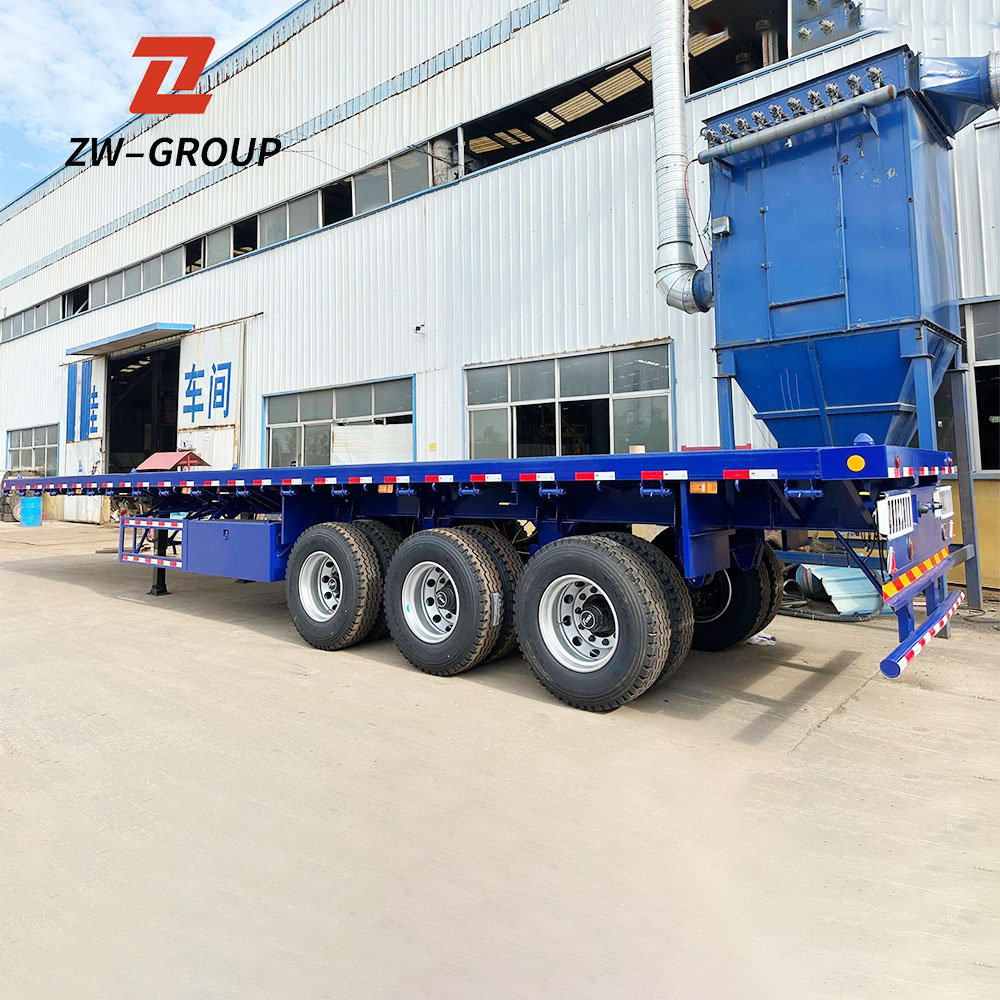

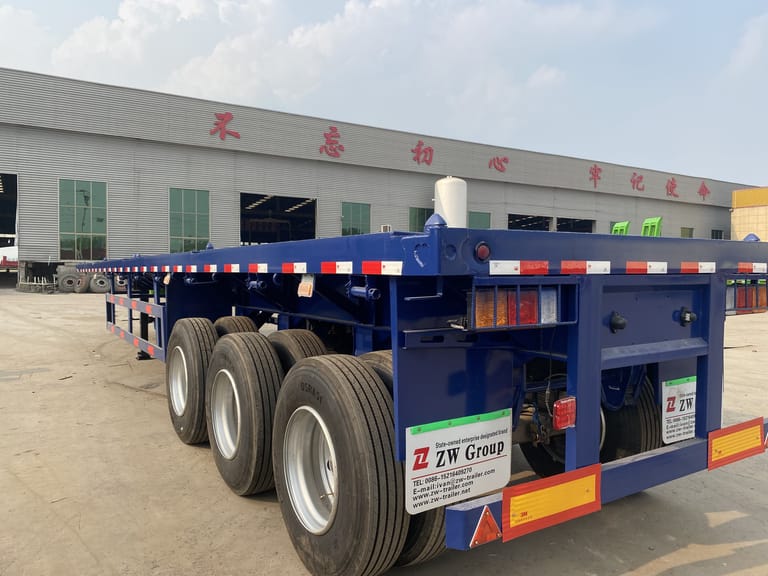

3 Axle 40ft Container Shipping Flatbed Semi Trailer Heavy-Duty Flatbed Trailer for Sale
Product Overview
ZW Group 3 Axle 40ft Container Shipping Flatbed Semi Trailer is engineered for long-distance container transportation, heavy-duty logistics operations, and bulk cargo hauling.
Designed with a robust chassis, high-strength steel frame, and premium components, this flatbed trailer delivers maximum durability, stability, and cost-efficiency.
Whether you are moving ISO standard containers, construction materials, or bulk goods, this trailer is a reliable choice for global logistics companies, fleet operators, and freight forwarders.
Key Features
1. Universal Design & High Compatibility
Standard 40ft Size: Compatible with 20ft, 40ft ISO containers, making it ideal for international shipping.
Twist Lock System: Equipped with high-quality twist locks for secure container fastening and easy loading/unloading.
Strong Chassis Construction: Built from Q345/T700 high-tensile steel for improved strength-to-weight ratio.
2. Premium Painting & Corrosion Protection
Shot Blasting & Pre-Treatment: Ensures smooth surface before coating.
Electrostatic Powder Coating or Baking Varnish: Provides anti-corrosion, UV resistance, and long-lasting appearance.
Custom Colors Available: OEM/ODM services for company branding.
3. Axles, Tires, and Suspension
High-Quality Axles: 3 x 13T/16T heavy-duty axles (FUWA/BPW brand options) for excellent load-bearing capacity.
Durable Tires: 12R22.5 / 315/80R22.5 tubeless radial tires, wear-resistant and fuel-efficient.

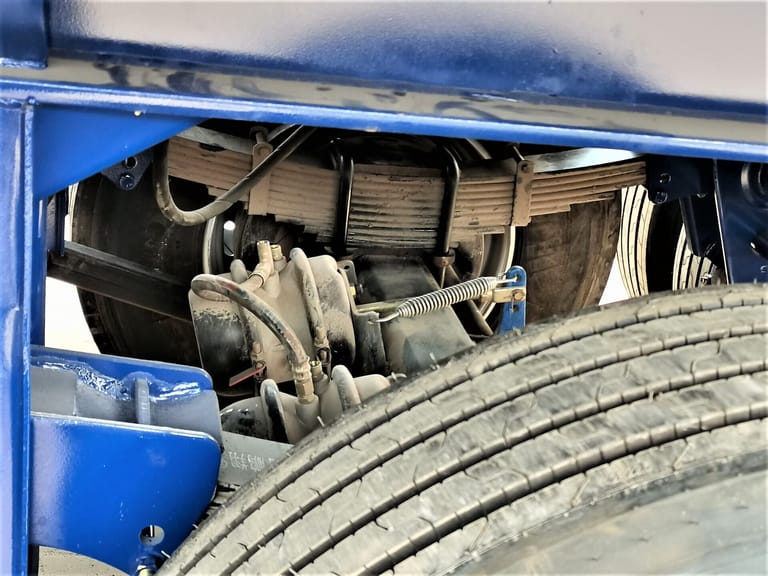

Mechanical or Air Suspension: Adjustable suspension system to adapt to different road conditions, reduce tire wear, and improve stability.
4. Safety & Reliability
ABS Braking System: Optional ABS/EBS system to enhance braking safety.
Electrical System: LED lights with international standard wiring harness.
Heavy-Duty Landing Gear & Kingpin: JOST brand landing gear and 2”/3.5” kingpin for secure coupling.
5. Detailed Advantages
Precision Welding: Automatic submerged arc welding for a seamless, high-strength frame.
Crossbeam Reinforcement: Optimized beam spacing to prevent deformation under heavy load.
Tool Box & Spare Tire Carrier: Convenient storage and spare tire installation for emergency use.
Side Guard & Reflectors: Safety-compliant design to prevent side collisions.
 |  |
|---|---|
 |  |
Specifications
Product Name | ZW Group 3 Axle 40ft Flatbed Semi Trailer |
Overall Dimension | 12,500mm x 2,500mm x 1,550mm |
Tare Weight | 6,000–7,500 kg (customizable) |
Payload Capacity | 40–60 Tons |
Main Beam | Q345/T700 High-Strength Steel, Welded I-Beam, Height 500mm |
Axle | 3 x 13T/16T FUWA/BPW/ZW |
Suspension | Mechanical Spring Suspension / Air Suspension Optional |
Tires | 12R22.5 / 315/80R22.5, 12+1 pcs |
Landing Gear | JOST brand 28T |
Kingpin | 2" / 3.5" Bolted / Welded Type |
Brake System | Dual Line Air Brake with Optional ABS |
Twist Locks | 12 pcs for 20ft/40ft Containers |
Electrical System | 24V LED Lights, Standard Connectors |
Manufacturing Process
Design & Engineering – We begin with 3D CAD modeling (SolidWorks / AutoCAD) to verify structural stresses, weight balance, and road regulation compliance.
Material Preparation – High-tensile steel beams are laser-cut and CNC pre-processed for superior precision.
Surface Treatment – Steel units undergo shot-blasting and acid-washing to remove impurities before primer and top-coat painting.
Chassis Assembly & Welding – Skilled welders perform MIG/TIG welding with reinforcements and gussets for maximum rigidity.
Axle & Suspension Installation – Precision fitting of beam axles, leaf springs or air suspension, and brake systems; pressure-testing for leaks.
Lighting & Safety Feature Installation – Add lighting, reflective tape, underride guards, and locking mechanisms.
Quality Inspection – Non-destructive testing (NDT), weld inspection, alignment checks, and structural integrity assessments.
Load Testing – Simulated and live testing (see section below).
Final Touches & Packaging – Protective film, shrink-wrap, wooden crating for critical components, and labelling.

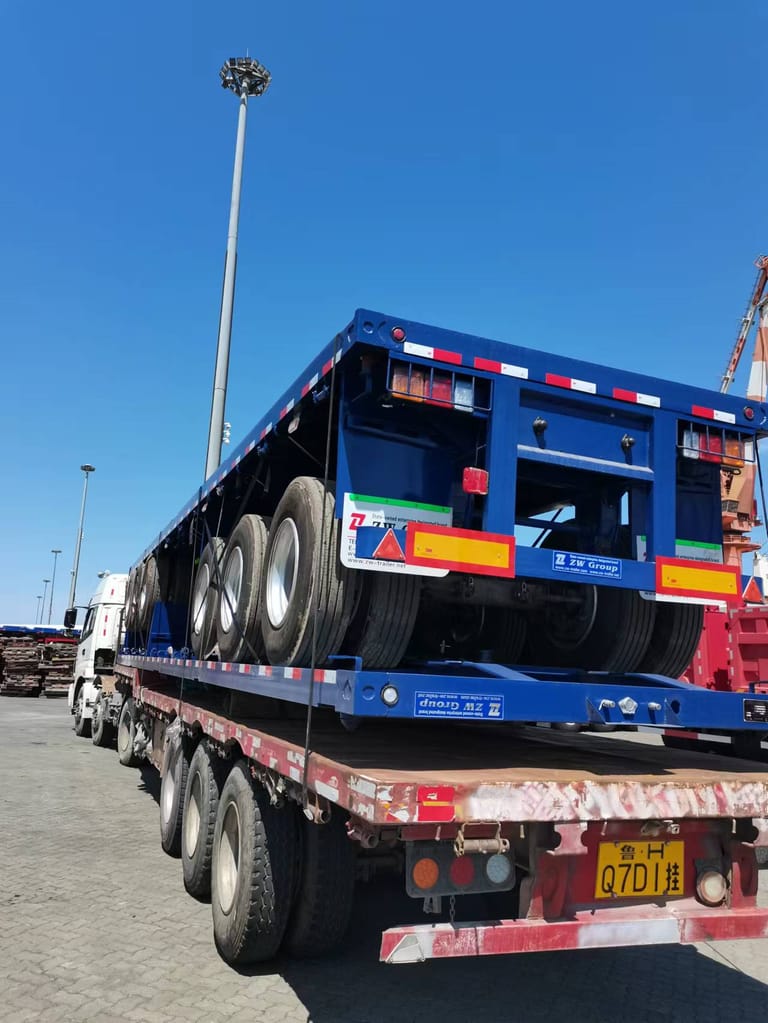

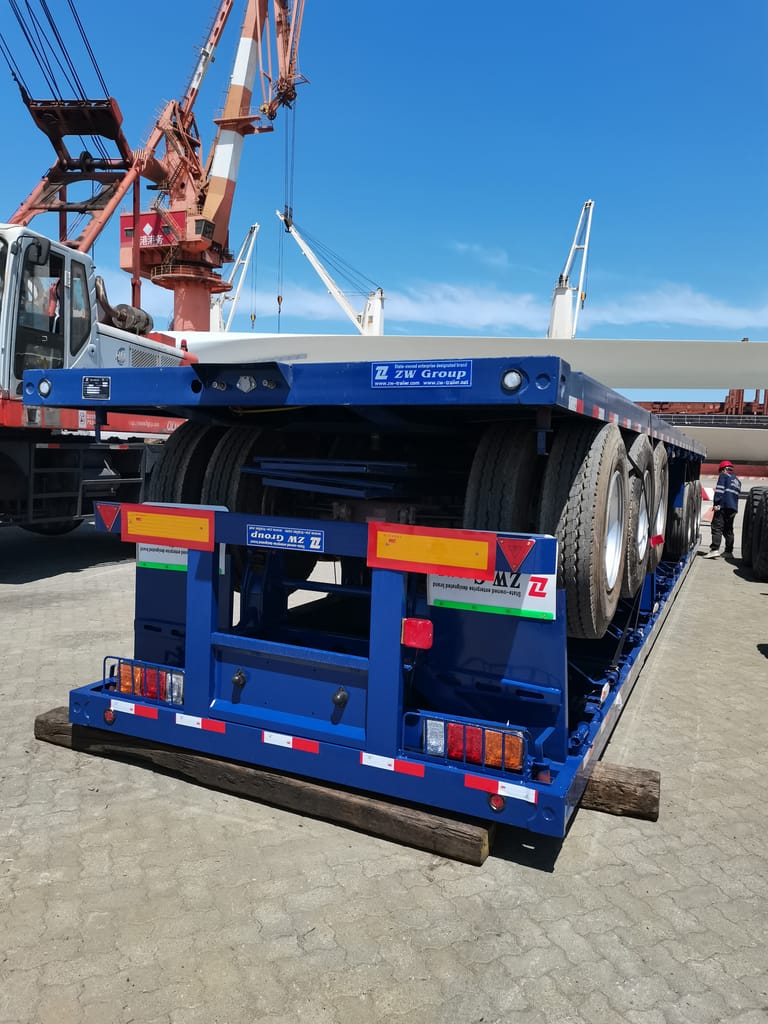

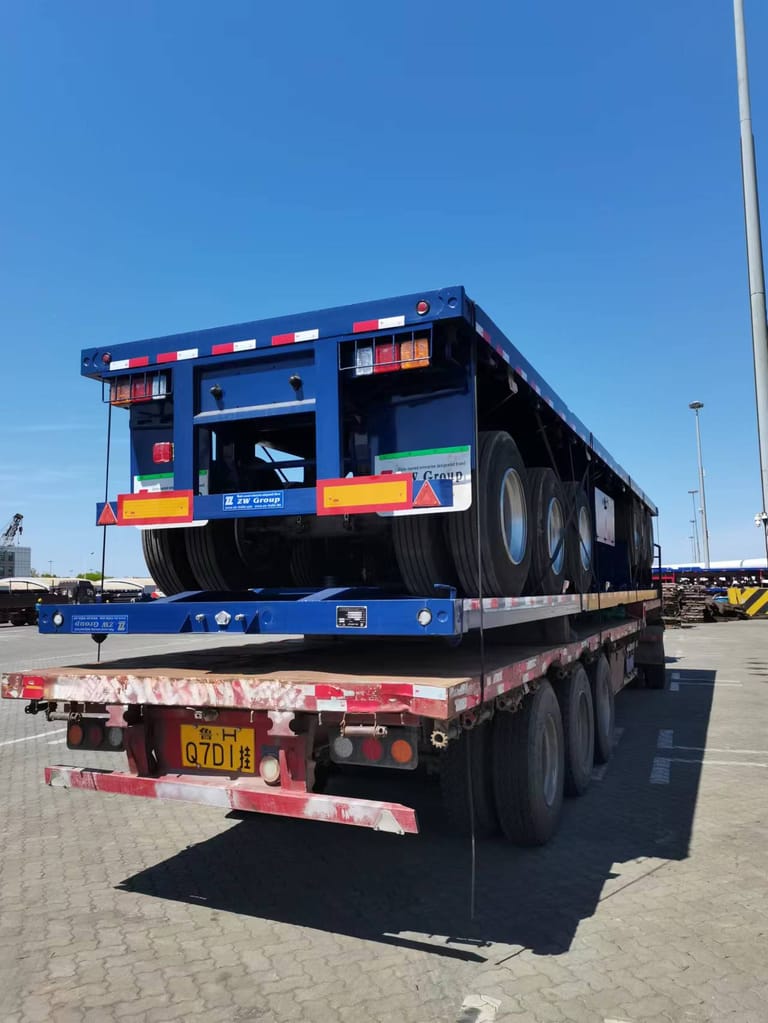

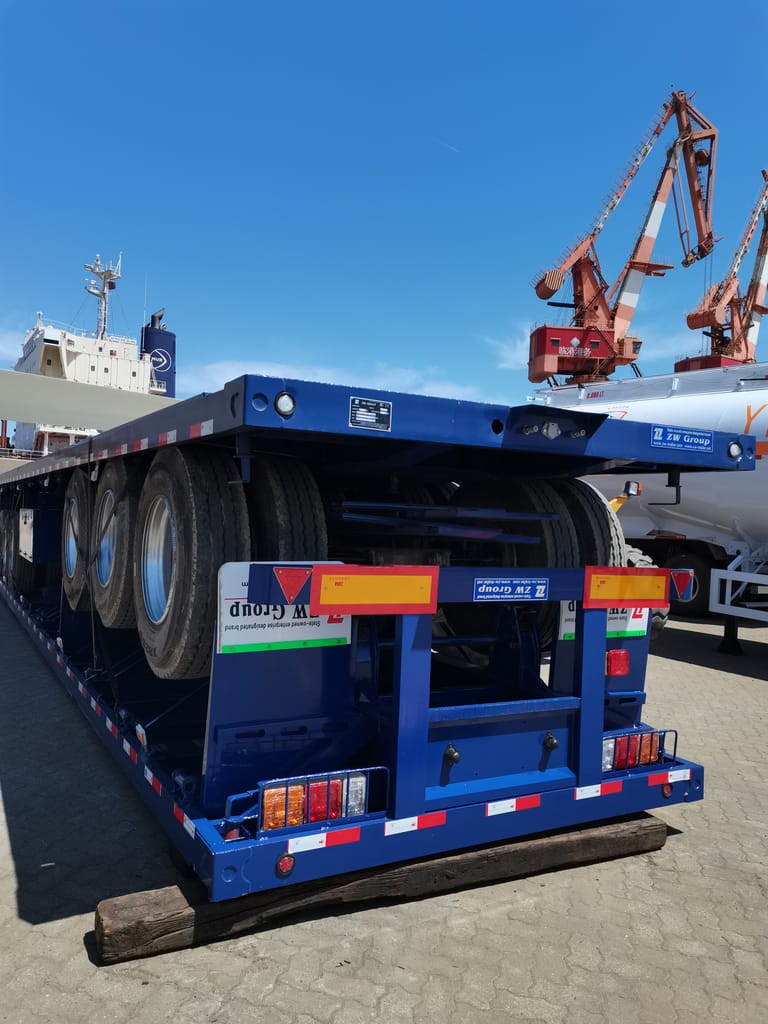

Packaging & Shipping
Protective Measures – Key components like landing gear and suspension are wrapped in protective film. Exposed areas are covered to prevent dust and weather damage.
Trailer Preparation – Delivered with minimal assembly required; tires inflated, lights tested, and fluid levels checked.
Crating – Small components (e.g., bolts, ABS modules, cylinders) are crated in a wooden box and fixed inside the flatbed for secure transport.
Containerization Option – Flatpacks available for highly compact shipping.
Drawings
While full engineering drawings are protected IP, we provide the following for clients:
General Arrangement (GA) Drawing – Shows side and top views with dimensions, axle placement, landing gear, and lighting layout.
Structural Section Details – Cross-sectional diagrams of chassis beams, weld joints, and gusset placements.
Suspension & Axle Layout – Schematic of leaf-spring axle arrangement or air bag assembly.
Braking Circuit Diagram – Pneumatic flow and ABS valve schematics.
Twist-Lock Configuration – Positions and types of container locking mechanisms.
Clients may request PDF or CAD files (DWG/DXF/SolidWorks) under NDA, with production lead time estimations..
 |  |
|---|---|
 |  |
FAQ
Q1: What is the maximum payload capacity?
A: Generally up to approximately 32,000–33,000 kg, subject to regional road weight limits and local regulations. Custom capacities are available.
Q2: Can I get air suspension instead of leaf springs?
A: Yes. Air ride is available as an option for smoother operation, especially on uneven road surfaces.
Q3: What braking systems are offered?
A: Standard pneumatic dual-line brakes. ABS, EBS, or disc brakes can be added based on customer preference.
Q4: Can I request modifications (e.g., different paint, branding, additional accessories)?
A: Absolutely. Custom paint, branding, hydraulic landing gear, and spare wheel carriers are available.
Q5: What certifications does this trailer meet?
A: We can meet ISO container transport standards, regional road regulations (e.g., EU Whole Vehicle Type Approval, DOT, ADR) upon customer specification.
Q6: How long is the delivery lead time?
A: Typically 6–8 weeks after deposit and final drawing approval, depending on order volume and customization.
