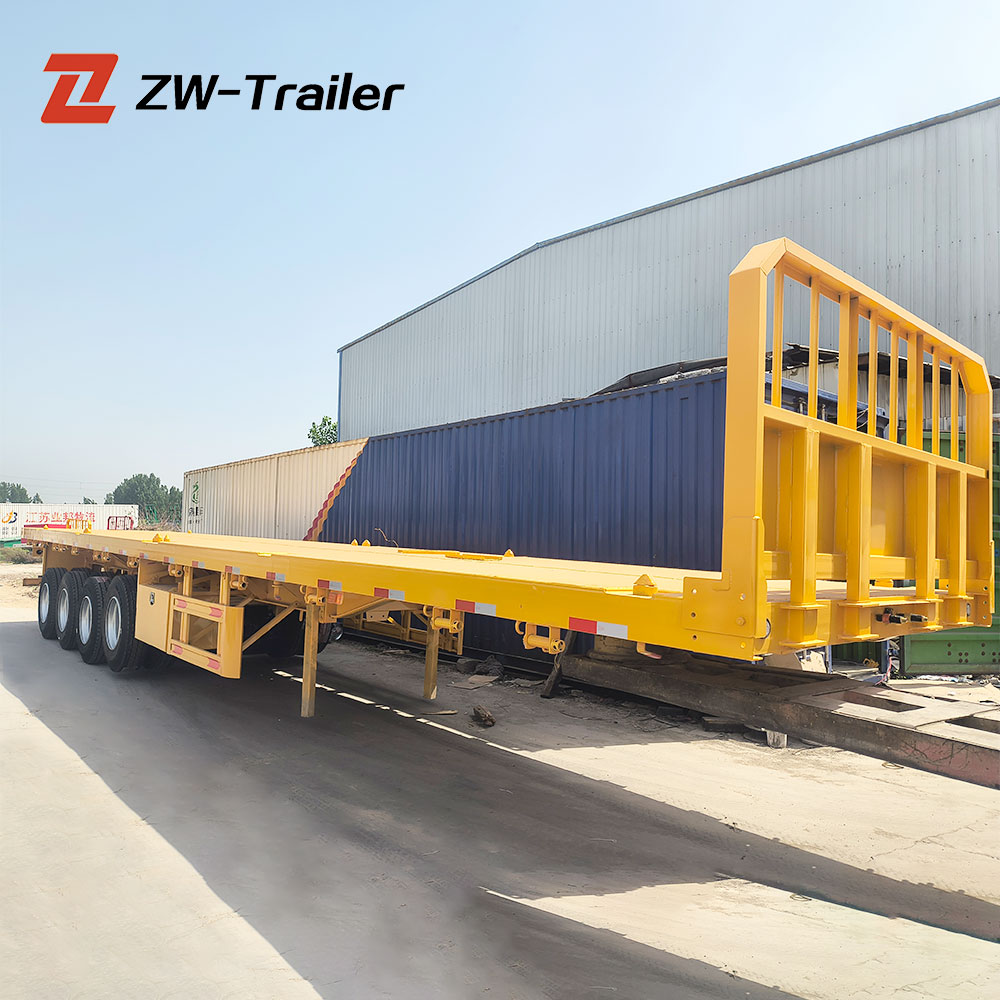

40ft Flatbed Semi Trailer

Standard Twist Locks with ABS Brake System

Product Overview

ZW Group presents the 4 Axle Flatbed Semi Trailer with Front Plate, a high-performance logistics solution designed for bulk cargo, containers, steel coils, construction materials, and oversized loads.

Engineered for rugged conditions and optimized for long-distance transport, this flatbed trailer combines durability, stability, and versatility in one robust package.

Product Features

1. General Advantages

High-Tensile Steel Structure: Main beams are made from Q345B or T700 high-strength steel, delivering increased load-bearing capacity and resistance to deformation under heavy pressure.

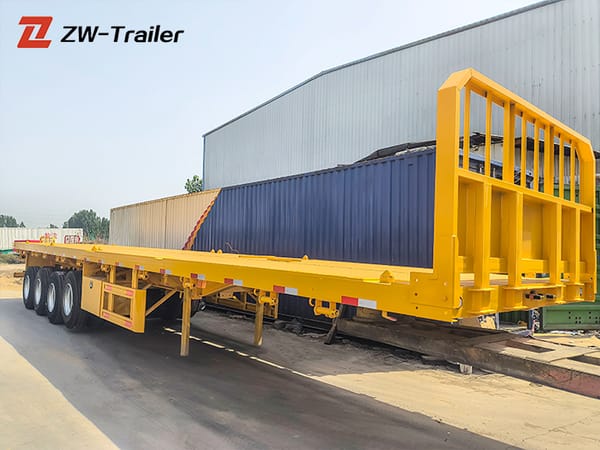

Front Plate Design: The added front plate improves cargo stability and wind resistance during high-speed highway operations, especially useful for container or bulk material transport.
Versatile Cargo Capability: Suitable for transporting 20ft/40ft containers, steel plates, wood logs, windmill components, and construction materials.

2. Painting and Corrosion Protection

Automatic Shot Blasting: Surface is treated with steel shot before painting to remove rust, grease, and scale.
2K Polyurethane Paint: Three-layer coating (primer, mid-coat, and top-coat) ensures strong corrosion resistance and weather durability for extended lifespan.
Customized Color Options: Choose from standard colors or specify RAL codes for corporate branding or fleet uniformity.

3. Axle & Suspension System

Famous Brand Axles: Equipped with BPW, FUWA, or ZW-brand heavy-duty 13T or 16T axles, known for superior durability and low maintenance.
Multi-Axle Configuration: 4 axle design ensures optimal weight distribution, minimizing road damage and tire wear.
Mechanical or Air Suspension Options:
- Mechanical Leaf Spring Suspension: Heavy-duty, rugged design ideal for uneven roads and heavy payloads.
- Air Suspension System: Smooth ride and adjustable height, preferred for container or sensitive goods transport.

4. Tires & Rims

Premium Tires: 12R22.5 or 315/80R22.5 tubeless radial tires from trusted brands like Triangle, Double Coin, or Linglong.
Steel or Aluminum Rims: Available depending on application and load needs; aluminum option reduces tare weight and improves fuel economy.
Double Tire Configuration: Provides extra stability and load distribution.

5. Brake System

WABCO or Haldex Braking System: Ensures quick and safe braking response under heavy loads.
ABS Optional: Anti-lock braking system improves safety under emergency braking conditions or slippery roads.

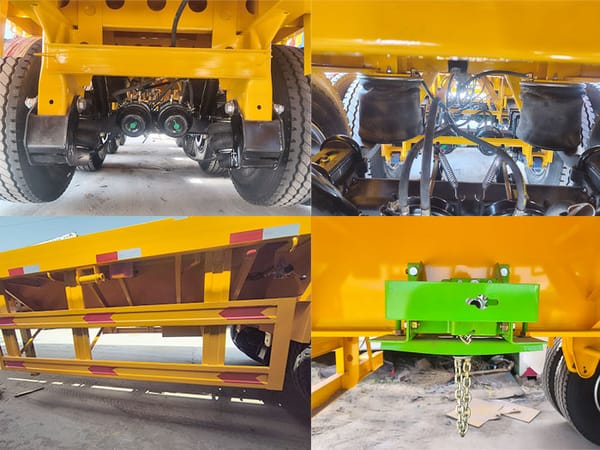

6. Detail-Oriented Advantages

High-Quality Welding: Robotic and manual welding with ultrasonic inspection ensures seamless joints and superior strength.
Container Twist Locks: ISO-standard locks for safe and secure container loading.
LED Lighting System: Waterproof, energy-efficient LED lights provide enhanced visibility and road safety.

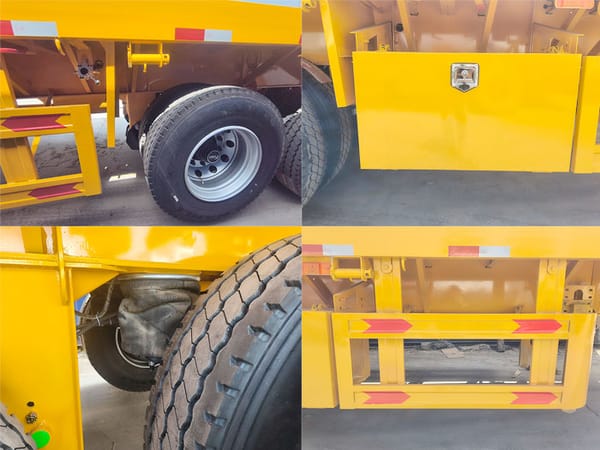

Toolbox & Spare Tire Carrier: Standard inclusion with lockable toolbox and integrated tire rack for convenience.

Specifications about Flatbed Trailer

Overall Dimension (LxWxH)

13000mm x 2500mm x 1580mm

Loading Capacity

60–80 tons

Axle Configuration

4 x 13T/16T FUWA/BPW/ZW

Suspension

Mechanical Leaf Spring or Air Type

Kingpin

2" or 3.5", bolted, JOST brand

Landing Gear

28T Two-Speed, JOST or OEM

Tire & Rim

315/80R22.5, 12 pcs

Brake System

Dual Line, WABCO valve

Painting

Shot blasted, 3-layer paint coating

Twist Locks (Container)

12 sets, heavy-duty locking system

Packaging & Shipping

Nude Packing: Trailers are shipped in bulk with protective coatings.
CKD or SKD Available: Completely Knocked Down or Semi Knocked Down packaging for assembly at destination.
Shipping Methods: Suitable for Bulk Vessel, RO-RO, or Flat Rack Container.
Custom Logo or Decal Branding: Offered upon request.
Delivery Time: 15–25 working days after down payment and confirmation.
