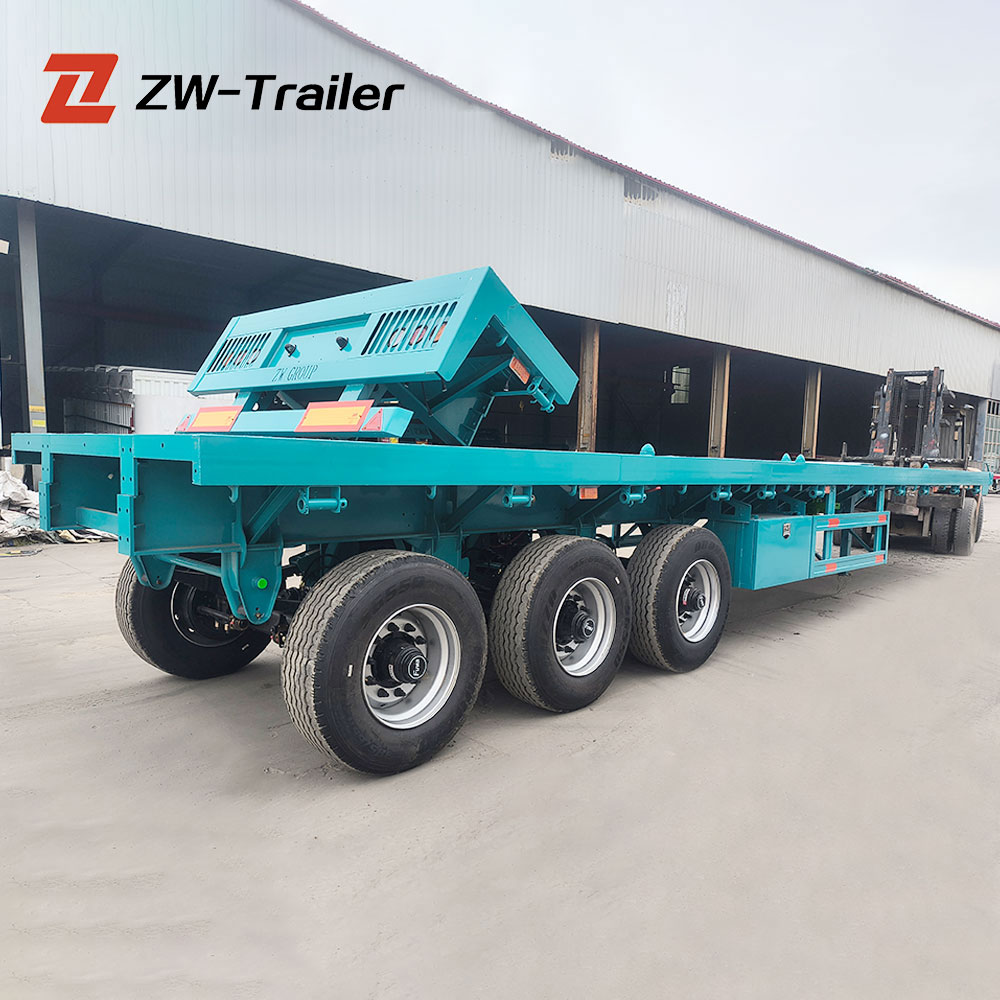

40ft Container Transport Flatbed Trailer

Versatile Applications Truncated-Tail Type

Product Overview

ZW Group 3 Axle 40ft Flatbed Semi Trailer with Detachable Rear Plate is engineered to meet the evolving needs of logistics and transportation businesses. This versatile flatbed trailer is ideal for carrying containers, bulk cargo, and oversized loads.

Its detachable rear plate design sets it apart, offering flexibility to adapt the trailer length and structure based on the specific requirements of each load.

With strong, durable construction, precision manufacturing, and robust load-bearing capacity, this semi trailer ensures long-term service life, safety, and cost-efficiency for business.

Key Product Features

🔧 Detachable Rear Plate for Load Flexibility

The detachable rear plate is fixed using high-strength bolts, allowing quick assembly and disassembly.
Enhances adaptability for long, oversized, or irregular cargo.
Converts easily between a standard flatbed and extended open-frame setup.

🛠 Heavy-Duty Construction

Built with high-tensile Q345B or T700 steel for main beams and cross-members.
Durable robot-welded structure for enhanced integrity and fatigue resistance.
Equipped with reinforced side rails for extra support and load securing.

🚛 High Load Capacity

Rated payload: up to 60 tons, depending on configuration and road conditions.
Engineered for safe transport of heavy-duty equipment, including excavators, transformers, or building materials.
Optional extra-axle configuration available for extreme heavy-haul loads.

⚙️ High-Quality Components

Axles: FUWA/BPW/ZW Brand (13T–16T).
Suspension: Mechanical leaf spring suspension (tri-axle standard); air suspension optional.
Tires: 12R22.5, 385/65R22.5 or customized as per region-specific standards.
Braking System: WABCO brake valves and ABS system optional.

Production Process

ZW Group operates with ISO-certified manufacturing facilities, ensuring every trailer meets international standards.

Raw Material Selection – Certified Q345B/T700 steel is tested for tensile strength and corrosion resistance.
Laser Cutting & Precision Forming – Automated laser systems ensure precise cuts and reduced material wastage.
Robotic Welding – Automated welding arms guarantee uniform weld strength and eliminate human error.
Sandblasting & Surface Treatment – Prepares surfaces for improved paint adhesion.
Paint Coating – Anti-rust primer + top paint (color customizable) applied via electrostatic spray.
Assembly – Rigorous component testing during and after the final build.

Frequently Asked Questions

Q1: Can this flatbed trailer be loaded into a 40 ft container as one piece?

A1: No. The trailer is designed with a truncated tail and modular construction. It can be disassembled into major segments that fit inside a 40 ft container for economical shipping. Re-assembly on site takes under 4 hours.

Q2: What payload capacity does it support?

A2: It supports up to approximately 30,000 kg payload under typical configuration, with GVWR up to ~40,000 kg. Custom payload ratings available on request.

Q3: Is it compatible with side-loading or top-loading operations?

A3: Yes. The flatbed’s open deck and lashing rings make it ideal for both side and top-loading of containers, machinery, and general cargo.

Specification

Trailer Model	3 Axles flatbed Semi Trailer
Overall Dimension(Lx W x H)(mm)	1250025001550
Tare Weight(KG)	7500
Loading Weight( KG)	60000
Axle	13TON *3Axle
Wheel Rim	Vacuum 9.0 12 pieces
Suspension system	Common Mechanical suspension
Steel Spring	10/10/10 leaf spring suspension
Main beam	The height of the beam is 500 mm
Platform plate	3mm Diamond plate
Tire Type and quantity	12R22.5 12 pieces
Traction Pin	50mm or 90mm
Spare Tire Carrier	1 pieces
Tool Box	1 Standard
Landing Gear	Standard 28ton
Brake system	Dual Line braking system
Brake air chamber	Eight big chamber

Load-Bearing & Road Testing

Each flatbed semi trailer undergoes a series of load-bearing and field-performance tests before shipment:

Static load testing up to 1.5× rated capacity
Dynamic road simulation tests on bumpy terrain
Axle alignment, brake force, and suspension tuning checks

Certified performance guarantees safe, stable driving even under extreme load conditions.

Packaging & Shipping

All trailers are shipped using standard export packing:

Nude in container or RoRo/bulk shipment
Detachable components (rear plate, axles, landing gear) packaged separately to reduce shipping volume.
Trailer frame sprayed with anti-corrosion oil for long-haul protection.

Global delivery available, including Africa, Southeast Asia, South America, and the Middle East.
