4 Axle Tipper Semi Trailer
U Shaped Steel Cargo Tipper with Enhanced Chassis
ZW Group 4 Axle 60 Ton Dump Semi Trailer
Heavy-Duty Dump Semi Trailer for Sand, Coal, and Bulk Cargo Transport
Product introduce
ZW Group Sand & Coal Transport 4 Axle 60 Ton Dump Semi Trailer is a robust and reliable solution for large-scale material transportation. Designed with superior strength, optimized payload capacity, and advanced safety features, this heavy-duty semi trailer is ideal for hauling sand, coal, gravel, stone, and other bulk cargo across long distances.
Built with engineering and international standards, it ensures maximum durability, stability, and efficiency for mining operations, construction projects, and logistics companies.
Product Description
4 axle 60 ton dump semi trailer is one of ZW Group models in bulk material transportation.
Its high-tensile steel body, reinforced chassis, and 60-ton loading capacity make it the preferred choice for industries requiring consistent heavy-duty performance.
Whether for coal mines, sand pits, or construction material delivery, this dump trailer guarantees efficient unloading, reduced labor cost, and higher productivity.
With advanced hydraulic lifting systems, precision welding technology, and an anti-corrosion surface coating, this semi trailer combines strength, safety, and longevity.
Each trailer undergoes strict quality control and load testing to ensure it performs in the toughest working environments.
Specifications
Item | Details |
|---|---|
Trailer Type | 4 Axle 60 Ton Dump Semi Trailer |
Loading Capacity | 50–60 tons |
Dimension (LxWxH) | 10500–12000 x 2500–3000 x 3400 mm (custom) |
Axles | 4 pcs, 13–16 ton axles (Fuwa/BPW /ZW optional) |
Suspension | Mechanical or Air suspension |
Tires | 12R22.5 / 315/80R22.5 (12–16 pcs) |
Hydraulic System | Front lifting hydraulic cylinder |
Body Material | Q345B/T700 high tensile steel |
Chassis | Heavy-duty I-beam structure |
Braking System | Dual-line pneumatic + ABS |
King Pin | 50# or 90# |
Landing Gear | JOST 28T two-speed |
Paint | Sand blasting + anti-rust epoxy primer |
Options | Side wall height, body shape, customization |
Key Features & Advantages
1. General Advantages
High-Strength Steel Body: Manufactured with Q345B or T700 high-tensile steel for excellent wear resistance and durability.
Anti-Corrosion Coating: Premium spraying and baking paint process provides long-lasting surface protection against rust and harsh weather.
Optimized Payload: 60-ton rated load capacity ensures efficient sand, coal, and aggregate transport.
Advanced Hydraulic System: Reliable cylinder lifting mechanism for smooth and stable unloading.
2. Axle & Wheel System
Heavy-Duty Axles: Equipped with 4 axles (13T/16T capacity) from well-known brands like Fuwa/BPW for improved load distribution and longer service life.

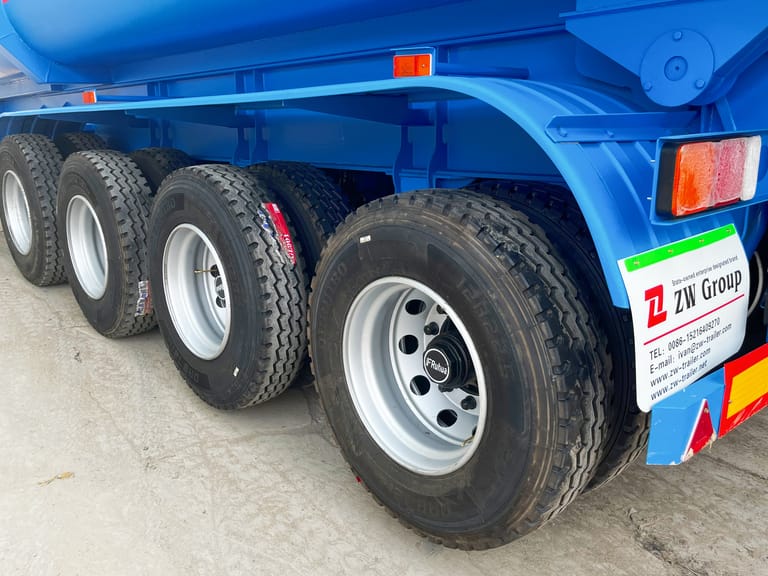

Durable Tires: Standard 12R22.5 or 315/80R22.5 radial tires designed for high load-bearing performance, stable grip, and extended mileage.
Hub & Bearings: Premium grease lubrication and anti-friction bearings minimize maintenance needs.
3. Suspension & Braking
Mechanical Suspension or Air Suspension (Optional): Customizable according to terrain and transport conditions.
Reinforced Leaf Springs: For improved load stability and shock absorption.
ABS Braking System: Enhances driving safety under heavy loads.
4. Detail Advantages
Hydraulic Cylinder: Well-known brand hydraulic system ensures faster, stable, and reliable lifting.
Chassis Frame: Optimized design with automatic submerged arc welding for excellent structural integrity.
Tipping Body Design: V-shaped and U-shaped body options for efficient cargo discharge.
Customizable Size & Design: Trailer dimensions, loading height, and steel thickness can be adjusted according to customer requirements.
Load Capacity & Performance Testing
Static Load Test: Ensures frame and body strength under full 60-ton load.
Dynamic Load Test: Simulates real working conditions with repeated dumping cycles.
Hydraulic System Test: Verifies smooth lifting and controlled cargo discharge.
Road Simulation Test: Confirms durability and stability under rough road conditions.
Engineering Drawings
ZW Group provides detailed 3D CAD drawings, blueprints, and trailer layout diagrams to customers for better understanding of product structure, customization, and future maintenance.
FAQ – Frequently Asked Questions
Q1: What is the maximum payload capacity of this dump trailer?
A1: The 4 axle dump semi trailer is designed for 50–60 tons, depending on road regulations and customization.
Q2: Can I customize the trailer dimensions or body design?
A2: Yes. We offer U-shaped or V-shaped bodies, adjustable side walls, axle numbers, and suspension systems based on customer needs.
Q3: What brands of axles and hydraulic cylinders are used?
A3: We use Fuwa/BPW axles and well-known hydraulic cylinder brands for stable performance.
Q4: How long is the production time?
A4: Standard production lead time is 20–30 days, depending on quantity and customization.
Q5: What is the warranty period?
A5: ZW Group provides 12 months or 100,000 km warranty on main components (axles, suspension, hydraulic system).
Q6: Do you provide after-sales service and spare parts?
A6: Yes, we supply spare parts, technical support, and video guidance for installation and maintenance.
