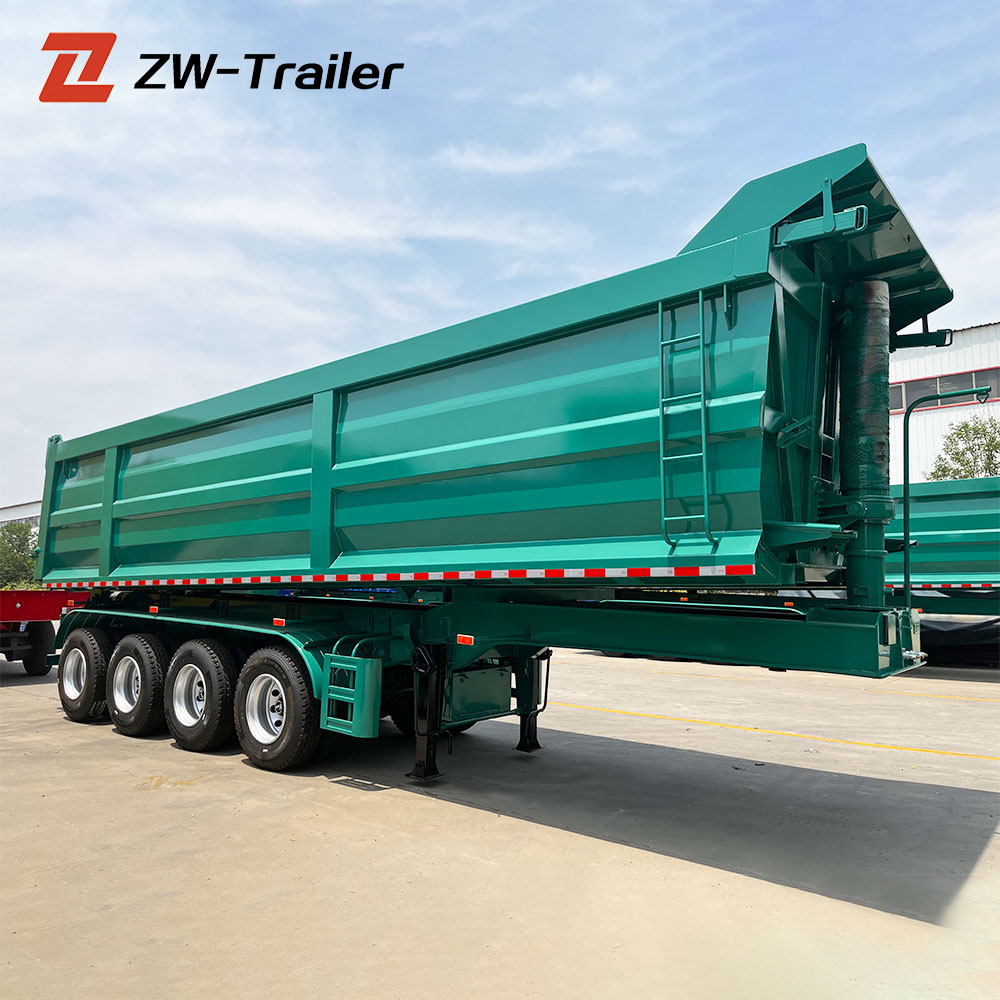

4 Axle Cargo Tipper Semi Trailer
U Shape Steel Tipper with Anti Roll Design
ZW Group 4 Axle 60 Ton Dump Semi Trailer – Built for Sand & Coal Transport
Heavy-Duty Tipper Trailer for Mining, Construction, and Bulk Cargo Logistics
When the job demands strength, efficiency, and reliability, the ZW Group 4 Axle 60 Ton Dump Semi Trailer delivers.
Designed for the toughest hauling conditions, this trailer combines industrial-grade steel construction, advanced hydraulic technology, and high-capacity performance to meet the needs of mining, coal transport, and sand logistics worldwide.
This trailer is more than just equipment — it’s a partner built to handle long hours, heavy loads, and challenging terrains, all while keeping costs low and uptime high.
Product Overview
ZW Group dump semi trailer is engineered to carry up to 60 tons of bulk materials including sand, coal, gravel, and stone.
With its robust 4-axle design, high-strength chassis, and stable hydraulic lifting system, it provides smooth tipping operations and dependable road performance.
Every detail — from the anti-corrosion surface treatment to the reinforced suspension system — is crafted to extend service life and reduce maintenance.
Whether you’re operating in dusty mines, rugged quarries, or construction sites, this trailer is built to last.
Specifications
Parameter | Details |
|---|---|
Model | 4 Axle 60 Ton Dump Semi Trailer |
Capacity | 50–60 tons |
Dimensions (L×W×H) | 10,500–12,000 × 2,500–3,000 × 3,400 mm (customizable) |
Axles | 4 × 13T/16T (ZW / Fuwa/BPW optional) |
Suspension | Mechanical or Air suspension |
Tires | 12R22.5 / 315/80R22.5 (12–16 pcs) |
Hydraulic System | Heavy-duty front tipping cylinder |
Body Material | Q345B / T700 steel |
Braking System | Dual-line pneumatic + ABS |
King Pin | 50# or 90# |
Landing Gear | JOST 28T two-speed |
Surface Treatment | Sandblasting + Epoxy primer + Polyurethane paint |
Custom Options | Side wall height, body thickness, body shape |
Product Features & Advantages
Durability at Its Core
High-Tensile Steel Body: The cargo box is built from Q345B or T700 steel, ensuring resistance to impact and wear.
Anti-Rust Coating: Each trailer is treated with sandblasting and multi-layer paint for maximum corrosion resistance.
Long Service Life: Engineered for demanding environments where standard trailers cannot endure.
Axles, Wheels & Tires
Four Heavy-Duty Axles: Reliable 13–16T axles distribute weight evenly for stability.
Premium Tire Options: Fitted with 12R22.5 or 315/80R22.5 radial tires designed for long mileage and heavy loads.
Easy Maintenance Hubs: Grease-lubricated hubs reduce downtime during operations.
Suspension & Stability
Mechanical or Air Suspension: Customers can select based on terrain needs — air suspension for smoother roads, mechanical suspension for rugged conditions.
Reinforced Leaf Springs: Enhanced stability under full loads, reducing body roll during tipping.
ABS System: Improves braking efficiency and safety on steep or slippery roads.
Hydraulic & Frame Design

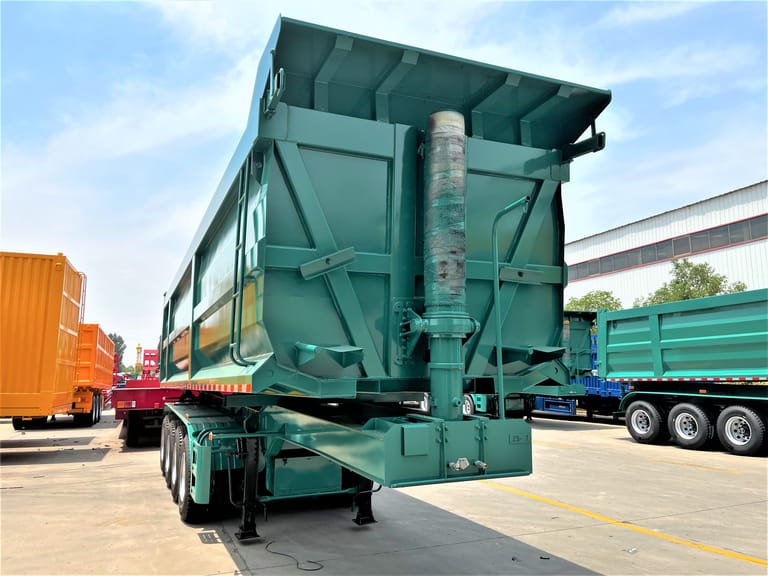

Front-Mounted Hydraulic Cylinder: Delivers strong lifting power with controlled speed.
Optimized Chassis: Double I-beam construction and robotic welding guarantee frame strength.

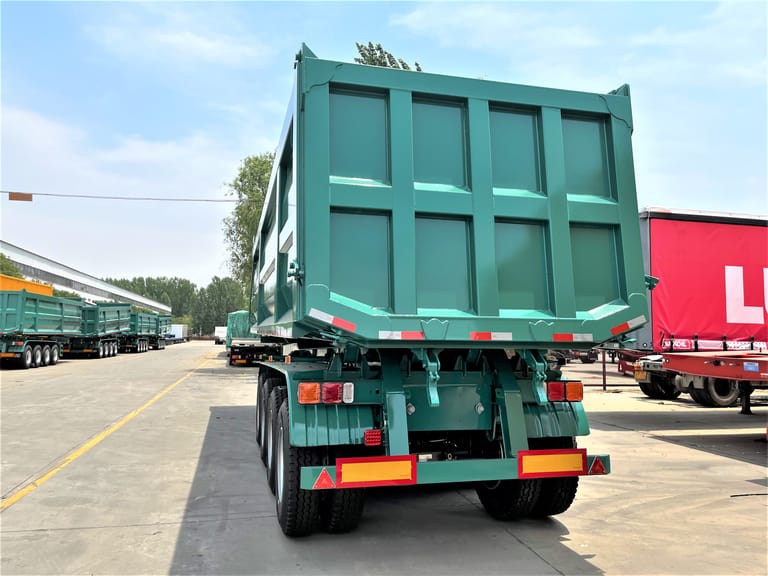

Custom Cargo Box Shape: U-shape or V-shape body options improve unloading efficiency.
How It’s Built: Production Process
Precision Cutting: Raw steel plates are shaped by CNC laser and plasma cutting machines for perfect accuracy.
Frame Welding: Automated submerged arc welding ensures strong, uniform seams.
Surface Preparation: Sandblasting removes rust and impurities before painting.
Painting & Coating: Multi-layer epoxy primer and polyurethane paint protect against harsh climates.
Assembly: Axles, suspension, and hydraulics are fitted and carefully aligned.
Final Quality Inspection: Every trailer is checked for dimensional accuracy, welding quality, and lifting performance.
Drawings & Documentation
ZW Group supplies detailed engineering drawings, layout plans, and CAD diagrams with every order, helping clients with assembly, maintenance, and future customization.
ZW Group 4 Axle 60 Ton Dump Semi Trailer is more than just a vehicle — it’s a dependable solution for heavy-duty transport. Whether you’re moving coal, sand, or construction aggregates, this trailer provides strength, efficiency, and long-term reliability.
Backed by rigorous testing, durable materials, and customer-focused design, it has become a trusted choice for mining operators, construction contractors, and logistics providers worldwide.
If you’re searching for a 60 ton dump semi trailer manufacturer who can deliver quality, customization, and competitive pricing, ZW Group is your partner for success.
