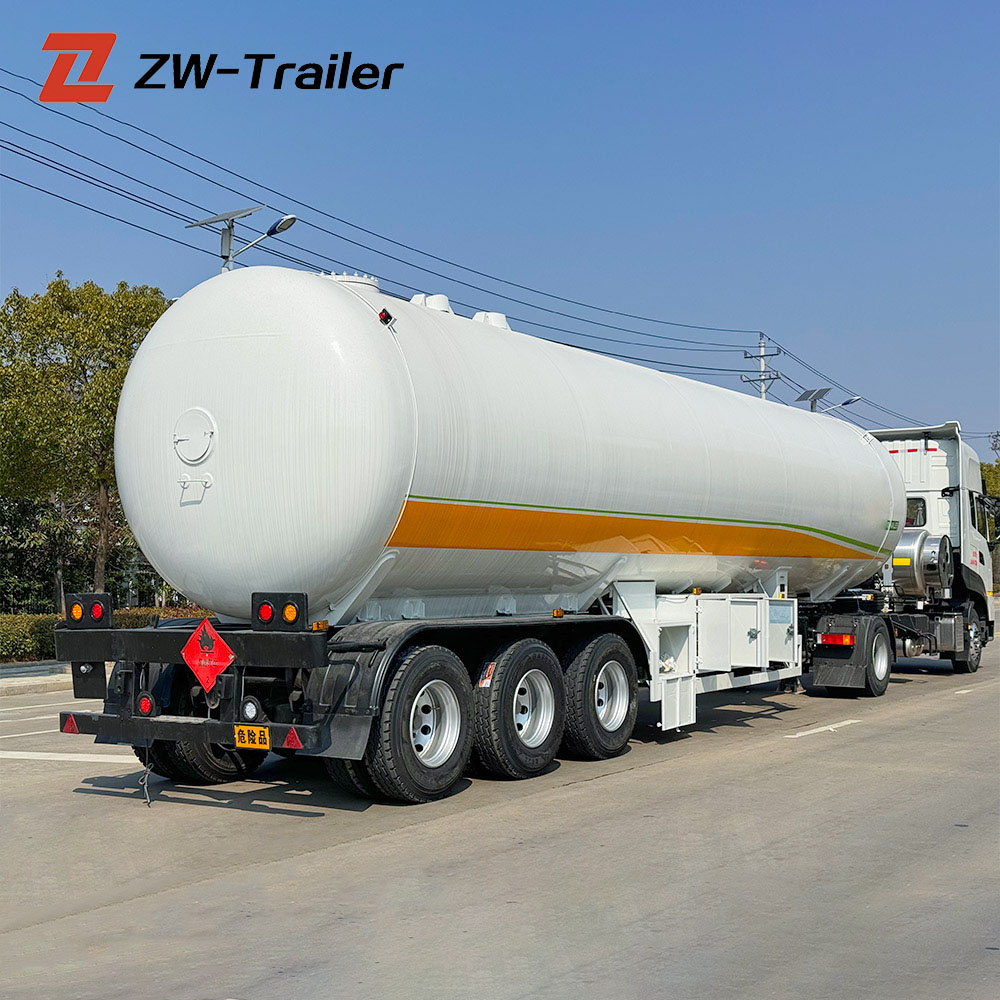

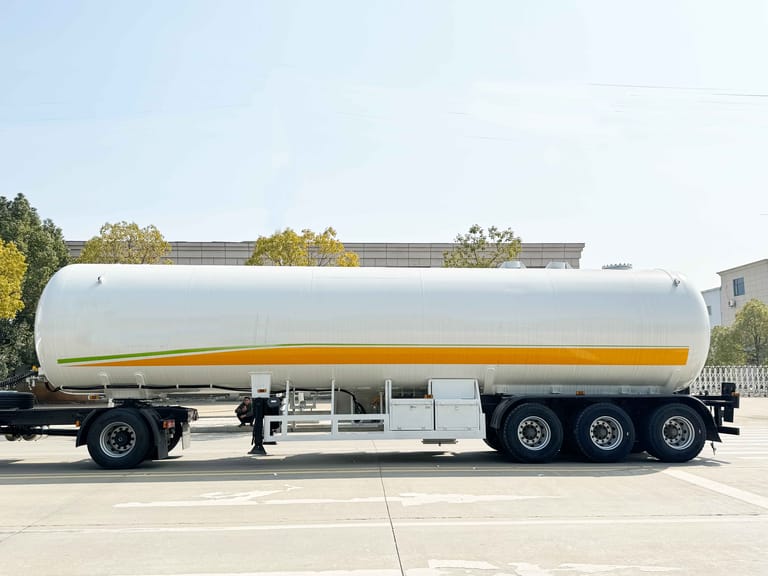

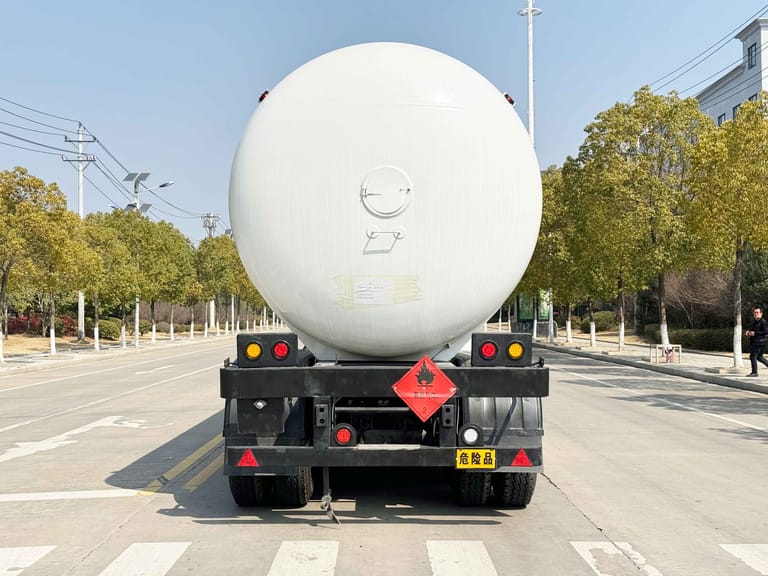

3 Axle LPG Tanker Trailer
Faster Loading and Unloading for LPG Deliveries
Customizable & Flexible LPG Transport Solutions
If your business needs tailored transport equipment, ZW Group’s 3 Axle LPG Semi Trailer is engineered with maximum flexibility in mind.
We provide a wide range of customization options — from tank capacity and suspension type to axle brands and accessory configurations — to perfectly match your operation’s requirements.
Product Overview
The trailer’s tank volume can be customized from 38,000L to 65,000L to meet your payload targets. Choose from carbon steel or special alloy materials for different climates and regulations.
Our design team collaborates closely with customers to modify nozzle arrangement, manholes, ladder position, and chassis length to optimize loading and unloading processes.
 |  |
|---|
Configuration Parameters
Parameter | Specification | Notes |
Model | ZW-LPG-3A | Customized capacities available |
Volume Capacity | 58,000L - 62,000L | Varies based on specific model |
Tare Weight | ~14,500 kg | Depends on optional features |
Overall Dimensions | 12500 x 2500 x 3800 mm | Customizable based on requirements |
Axle Type | 3 x 13-ton Axles (FUWA/BPW/ZW) | High-strength axles |
Tire Specification | 12R22.5, 12 pieces | Premium radial tires |
Suspension | Mechanical/Air Suspension | Choose based on preference |
Material | Q345R Low-Alloy Steel | High-tensile strength for durability |
Design Pressure | 1.77 MPa | Compliant with international standards |
Working Temperature | -40°C to +50°C | Wide range for global use |
Safety Features | Pressure Gauge, Thermometer, Safety Valves, Emergency Shut-off Valve | All standard safety components |
Kingpin | 2-inch or 3.5-inch | JOST brand or equivalent |
Landing Gear | Two-speed, manual operation | JOST brand or equivalent |
Painting | Polyurethane coating | Durable and corrosion-resistant |
Key Customization Options
Tank Capacity: 38–65 cubic meters per customer request.
Material Choices: Q345R, SA516 Gr.70, stainless steel (optional for special applications).
Axle Brand: FUWA, BPW, or ZW high-strength axles.
Suspension System: Mechanical, air, or bogie suspension for different road conditions.

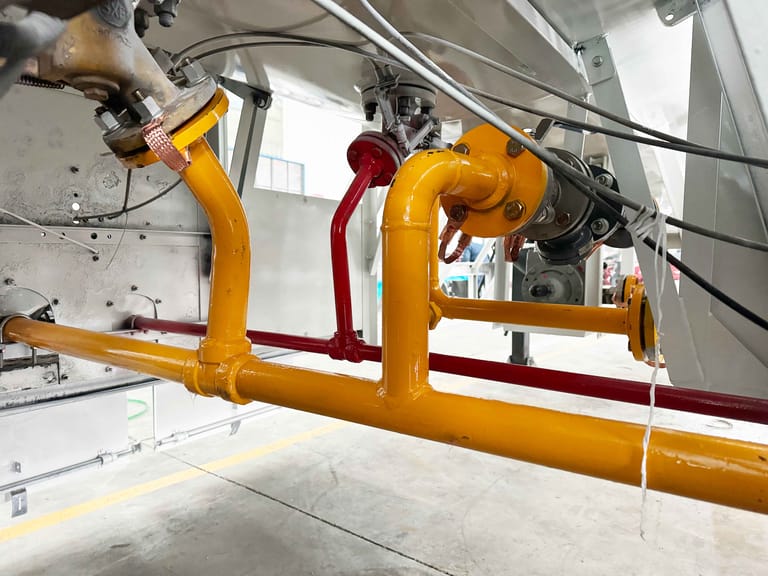

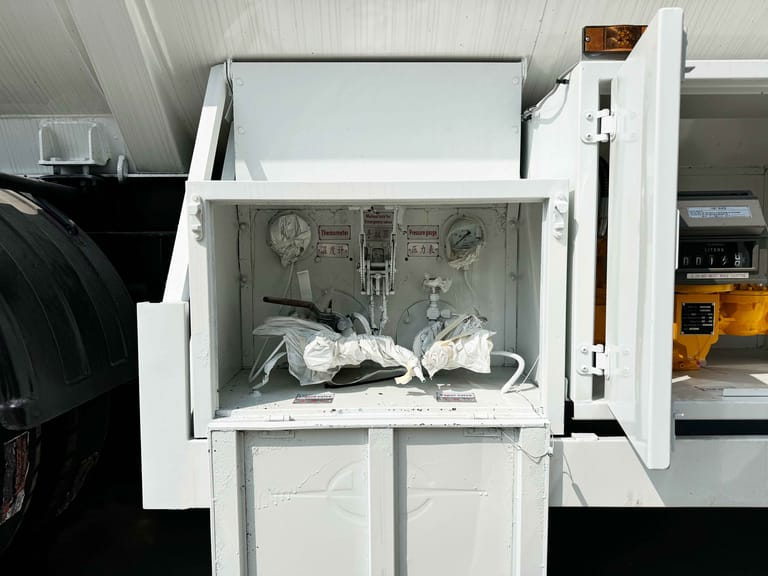

Valve & Fitting Arrangement: Optional bottom loading/unloading, double-compartment design.

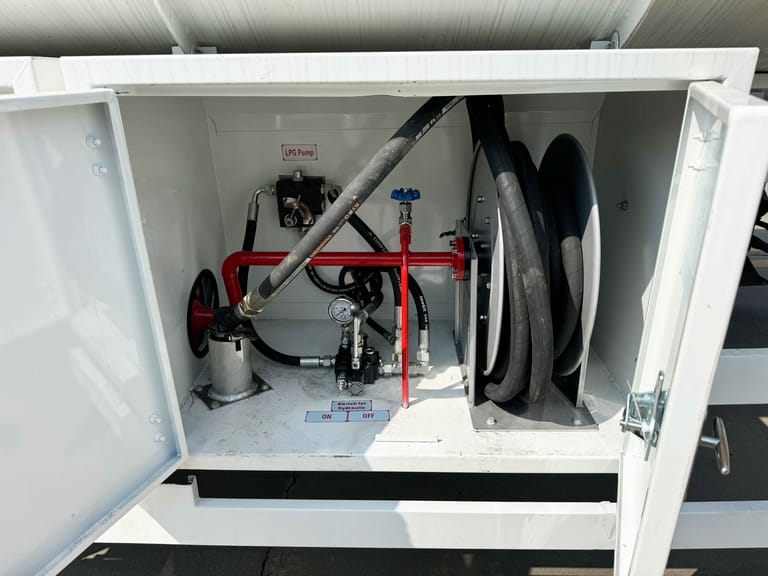

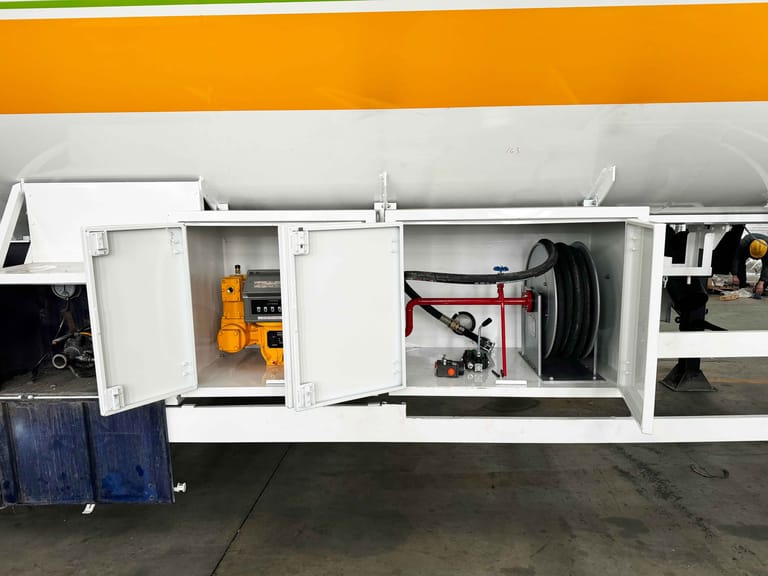

Accessory Packages: Toolbox size, fire extinguisher bracket, spare wheel carriers, flow meters.
Painting Colors: RAL color customization with logo and branding decals.
 |  |
|---|---|
 |  |
Product Features: The ZW Group Advantage
Premium Painting Process: Our trailers undergo a multi-layer painting process, including sandblasting for surface preparation, a zinc-rich epoxy primer for corrosion resistance, and a final polyurethane topcoat for a durable, high-gloss finish.
High-Quality Axles: We equip our trailers with renowned brand axles, such as FUWA or BPW. These axles are known for their exceptional load-bearing capacity, superior braking performance, and long-term reliability, ensuring smooth and safe transit.
Durable Tires: Each trailer is fitted with premium, heavy-duty radial tires. These tires offer excellent traction, low rolling resistance for better fuel economy, and a longer wear life, reducing the frequency of replacements and operational costs.
Robust Suspension System: Our trailers feature a heavy-duty mechanical leaf spring or air suspension system, designed to handle diverse road conditions.
Enhanced Safety Valves: The trailer is equipped with multiple layers of safety features, including an excess flow valve, a safety relief valve, and an emergency shut-off valve, all designed to prevent gas leakage in the event of an accident.
Advanced Braking System: An internationally compliant ABS (Anti-lock Braking System) and EBS (Electronic Braking System) are installed to provide superior stopping power and prevent skidding on slippery surfaces.
Welding Integrity: All welds are performed by certified welders using automated submerged arc welding technology, followed by a comprehensive NDT (Non-Destructive Testing) process to ensure zero defects.
Hydrostatic Pressure Testing: Every pressure vessel is subjected to a rigorous hydrostatic pressure test to confirm its structural integrity and safety under pressure.
Drawing & Design:
A detailed technical drawing will be provided to the client for approval before production begins. The drawing includes all key dimensions, material specifications, and a detailed list of components, ensuring the final product meets your exact requirements.
Frequently Asked Questions
Q: What is the lead time for production?
A: Standard production time is typically 30-45 working days, though this may vary based on customization requirements and current order volume.
Q: Do you offer after-sales service and spare parts?
A: Yes, we provide comprehensive after-sales support and can supply original spare parts to all our clients worldwide.
Q: Can the trailer be customized for specific country regulations?
A: Absolutely. Our engineering team can modify the design and components to comply with specific local regulations in your country.
Q: What is the expected service life of the trailer?
A: With proper maintenance, the service life of our LPG semi-trailers can exceed 20 years.
