3 Axle Container Flatbed Trailer
Heavy-Duty Solution for Container Logistics

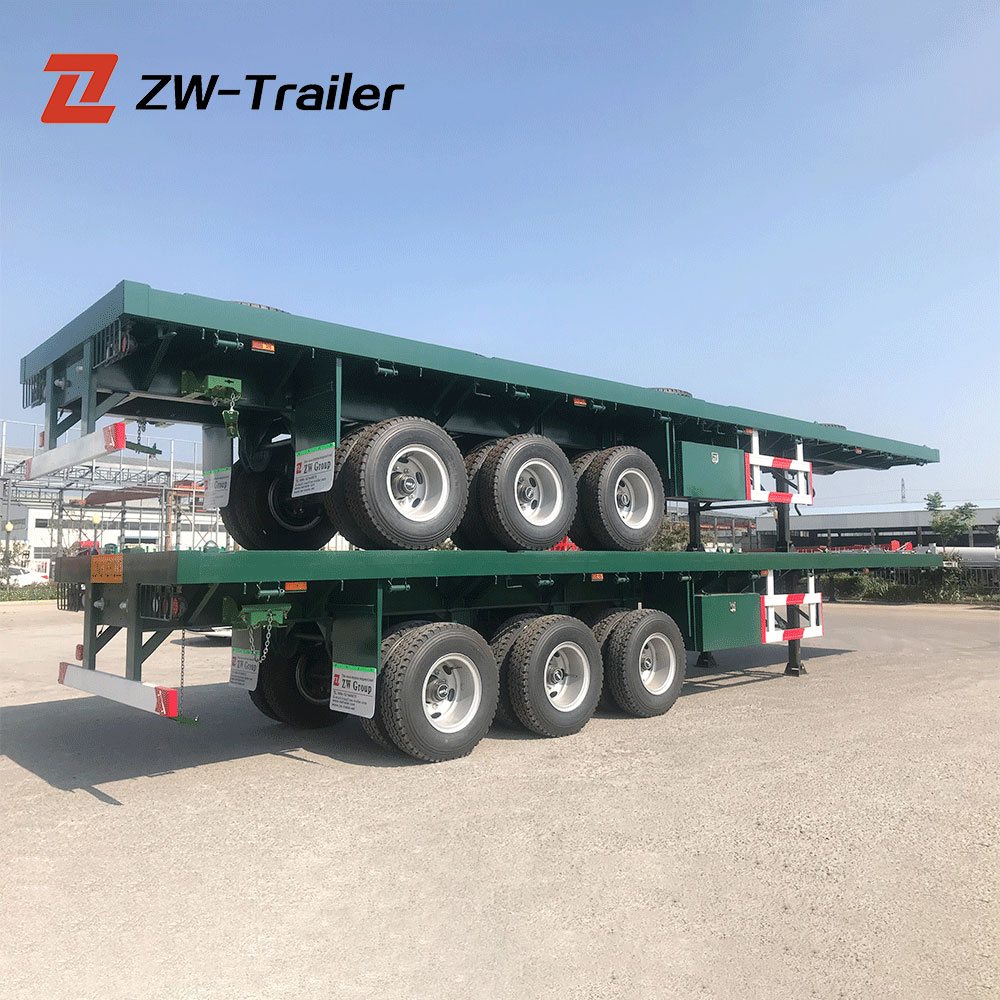

3-Axle 40FT Container Flatbed Semi Trailer
ZW Group 3-Axle Container Flatbed Semi Trailer is engineered to exceed these rigorous industry standards. As a heavy-duty flatbed trailer manufacturer, ZW Group delivers a robust, versatile, and high-performance transport platform perfectly suited for carrying 1x40ft or 2x20ft ISO shipping containers and various types of bulk cargo or heavy machinery. Choose the ZW flatbed for superior carrying capacity, optimized operational costs, and guaranteed long-term service life.
Product Description
ZW 3-Axle 40FT Flatbed Semi Trailer is a flagship model designed for container transport and general freight haulage across diverse road conditions, including African, Middle Eastern, and south American highways.
This semi-trailer features a strengthened main beam construction using Q345B high-strength manganese steel and a robust chassis, ensuring maximum stability and resistance to deformation under heavy loads.
The trailer is equipped with 12 sets of ISO twist locks, providing secure and flexible fastening for both 20ft and 40ft containers.
Its open, flat-deck design allows for multi-directional loading and unloading via cranes or forklifts, significantly increasing operational speed at ports, shipping lanes, and transit stations.
From intermodal logistics to construction material transport, the ZW flatbed trailer is the cost-effective and durable backbone your fleet needs.
Key Product Features and Advantages
Main Beam：Constructed from Q345B High-Strength Steel (14mm top, 8mm middle web, 16mm bottom plate) for exceptional load-bearing capacity and anti-collapse protection.
Axles：Three 13-ton capacity axles (FUWA, BPW, or ZW brand) with a large 16-ton brake system for superior braking performance and reduced stopping distance.

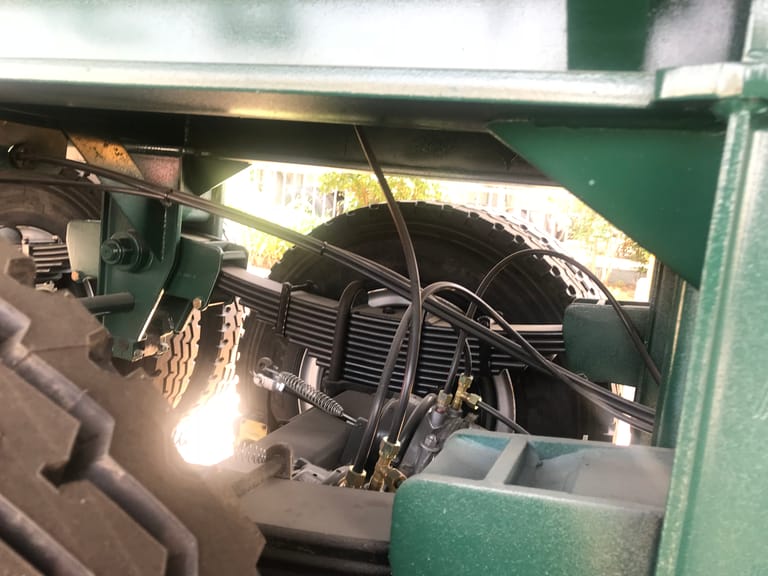

Suspension：Mechanical Suspension (standard, heavy-duty type) with multi-leaf springs (e.g., 10/10/10 leaf) and a reinforced 70mm center balance pin, designed to withstand harsh road conditions.
Tires：High-quality 12R22.5 tubeless tires or 11.00R20 radial tires
Painting Process：Full Electrostatic Powder Spray Coating and baking paint process provides a superior, high-adhesion finish that is brighter, more corrosion-resistant, and guaranteed not to fade for over five years. Cost-effective anti-rust paint.
Technical Configuration Parameters
Parameter | Specification | Notes |
Model Type | 3 Axle 40FT Flatbed Semi Trailer | Container Shipping Flatbed Semi Trailer |
Overall Dimension (L×W×H) | Approx. 12500 mm × 2500 mm × 1550 mm | 40FT Flatbed dimensions |
Loading Capacity (Max) | 40 Tons (Customizable up to 60-80 Tons) | High payload capacity |
Tare Weight | Approx. 6,500 kg – 8,000 kg | Depends on specification and material |
Axle Specification | 3 Axles, 13 Ton capacity each (FUWA/BPW Optional) | |
King Pin | 2-inch (50#) or 3.5-inch (90#) traction pin (JOST optional) | |
Twist Locks | 12 Sets (Suitable for 1x40ft, 2x20ft, 1x20ft containers) | ISO Container Locks |
Main Beam Material | Q345B Manganese Steel | Height: 500mm, Upper: 14mm, Middle: 8mm, Lower: 16mm |
Suspension Type | Heavy-Duty Mechanical Suspension | Optional: Air Suspension, Bogie Suspension |
Tire Type & Quantity | 12 Units (e.g., 12R22.5 Tubeless or 11.00R20 Radial) | Tri Axle trailer tires |
Brake System | Dual Line Air Brake System | Optional: WABCO/Haldex ABS/EBS |
Landing Gear | 28 Ton Two-Speed Manual Operation (JOST Optional) | |
Electrical System | 24V, 7-pin electrical socket, LED Lights | |
Platform Plate | 3mm/5mm Diamond Steel Plate | Checkered floor plate |
Detail-Oriented Design Advantages

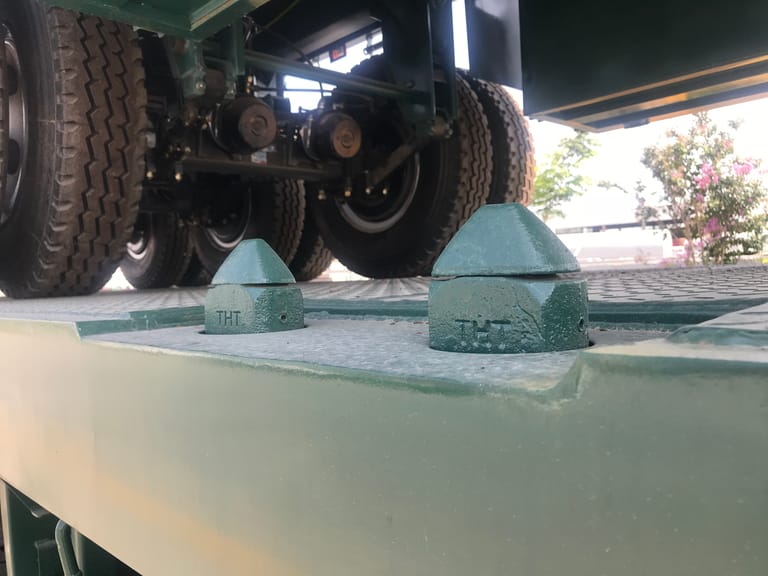

Versatile Cargo Handling: Equipped with 12 ISO twist locks to securely transport a 20ft container, two 20ft containers, or a single 40ft container.
Reinforced Floor Plate: Standard 3mm or 5mm thick diamond steel plate floor (checkered plate) provides superior friction and durability for bulk cargo and prevents slippage.
Optional Headboard/Side Bars: Customization available with a detachable headboard (front baffle plate) for cargo safety and optional side bars or side walls for multi-purpose transport (e.g., steel pipe, logs, or bagged goods).
Complete Electrical System: Full LED lighting system with protective nets, including tail lamps, side lamps, and reflectors, meeting international electrical standards for high visibility and safety.
 |  |
|---|---|
 |  |
Secure Global Delivery Solutions
ZW Group understands the logistics of international shipping and provides optimized packaging and delivery methods to ensure your container chassis trailer arrives in perfect condition.
Nude/Bulk Shipment: Trailers are typically transported by Ro-Ro (Roll-on/Roll-off) vessel or in Bulk Cargo Shipments to minimize shipping costs and preparation time.

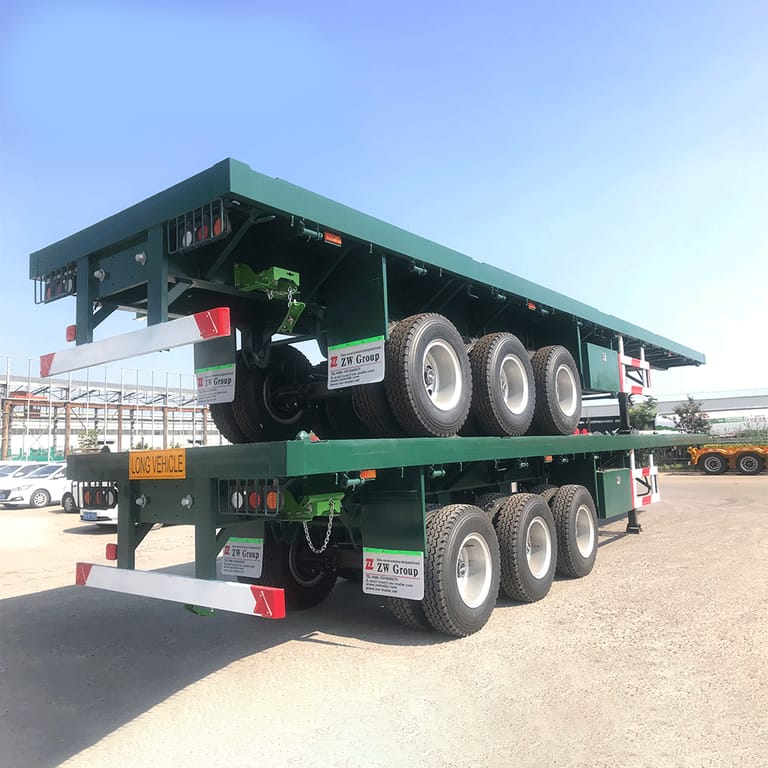

Stackable Packaging: For multiple units, trailers can be professionally stacked (three units into a stack) to maximize space utilization in shipping, further reducing freight costs.
Anti-Corrosion Protection: Before loading, all critical components are sprayed with anti-rust wax and the entire unit is covered with a waterproof raincoat/tarp to protect against seawater corrosion and weather during long sea voyages.
Why Choose the ZW Group 3 Axle Flatbed Semi Trailer?
Our container shipping flatbed semi trailer is not only a cost-effective solution for freight forwarding companies, logistics providers, and shipping lines, but also a long-lasting investment that reduces downtime and maintenance costs.
Key highlights:
Strong frame structure for heavy container loading.
Universal design compatible with ISO standard containers.
Customizable axles, tires, suspension, and painting options.
Proven performance in Africa, Southeast Asia, Middle East, and South America.
Factory-direct supply with competitive pricing and global delivery.
