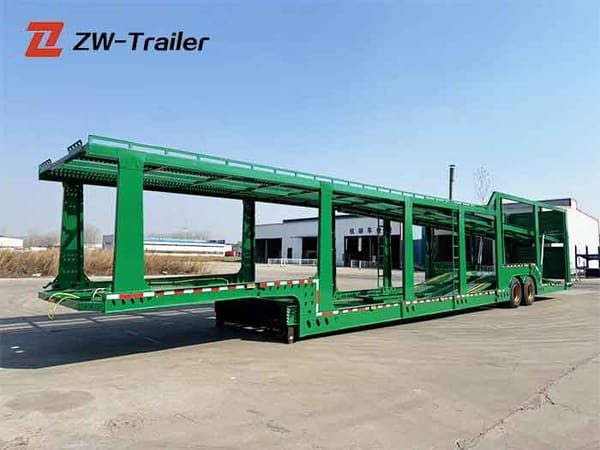

2 Axle Car Carrier Semi Trailer

Product Overview

ZW Group 2 Axle 8 Set Car Carrier Semi Trailer is a high-performance transport solution engineered for efficient and secure vehicle transportation. Designed with precision and built for endurance, this model accommodates up to 8 standard-sized cars, making it an ideal choice for car transport business.

Whether you're hauling sedans, SUVs, or light trucks, this car hauler trailer combines structural reliability with optimized loading design, providing maximum transport capacity while ensuring road safety and operational efficiency.

Key Features & Benefits

Premium Powder Coating/Painting:

The trailer body is treated with industry-leading electrophoretic painting or powder coating techniques, offering long-lasting protection against rust, corrosion, and wear from environmental factors.

Durable Steel Structure:

Built using high-tensile steel (Q345 or T700 as optional), the frame provides superior strength-to-weight ratio and anti-deformation capability, ensuring long service life and minimal maintenance.

Streamlined Aerodynamic Design:

Optimized front fairings and flatbed structure reduce wind resistance and improve fuel efficiency during long-haul operations.

High-Strength FUWA/BPW/ ZW Axles (Optional):

2 axles engineered to support high dynamic loads and resist fatigue during extended use. Both drum and disc brake configurations are available for enhanced stopping power.

Premium Radial Tires (Triangle/Linglong/Double Coin):

Heavy-duty 12R22.5 or 385/65R22.5 tires provide exceptional load-bearing performance, better traction, and longer tread life on varying road conditions.

Mechanical or Air Suspension Systems:

Choose between mechanical leaf spring or air suspension depending on transport preferences. Air suspensions improve ride quality and minimize impact damage to vehicles.

Shipping, Packaging & Documentation

• Packing: Nude or bulk form with essential parts wrapped in anti-corrosion film.

• Shipping: Units can be shipped by 40HQ container (with some disassembly), Ro-Ro shipping, or bulk vessel depending on destination.

• Lead Time: 15–25 working days after deposit confirmation.

• Documentation: Full set of export documents including:

  • Commercial Invoice

  • Packing List

  • Bill of Lading

  • Certificate of Origin (Form E, Form A, etc.)

• SGS/CCPIT Inspection (optional)

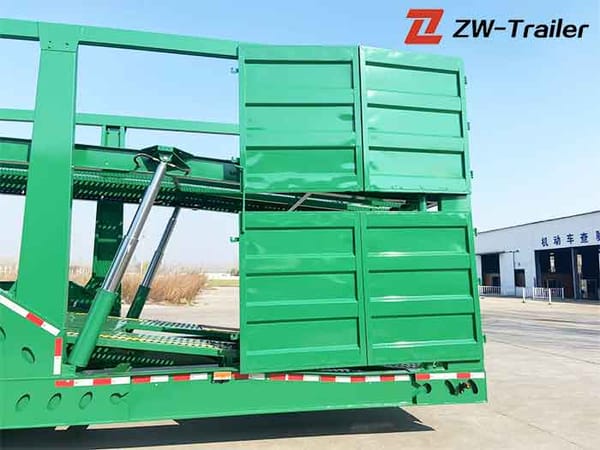

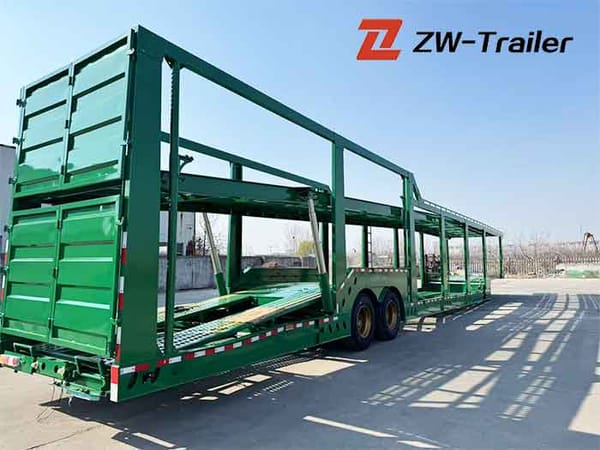

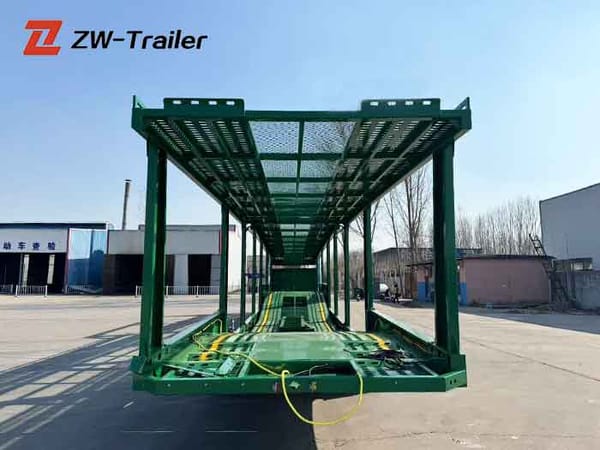

Precision Engineering Car Trailer Details

Manufacturing Process

At ZW Group, our production line follows rigorous quality control standards in accordance with ISO 9001 and CE certification norms. Each semi trailer undergoes the following phases:

1. Raw Material Selection & Laser Cutting

   • High-grade carbon steel sheets are selected and precision-cut using automated CNC and laser machines.

2. Frame Welding & Assembly

   • Robotic welding arms and skilled technicians construct the chassis and side structures, ensuring consistent weld strength and finish.

3. Sandblasting & Surface Treatment

   • All parts are sandblasted to remove impurities before being electrocoated or painted for corrosion resistance.

4. Parts Installation

   • Axles, suspensions, hydraulic lines, lighting systems, and deck components are fitted and tested.

Final Inspection

• A dedicated QC team performs dimensional verification, load testing, and brake performance evaluation before dispatch.

Load Capacity & Testing

• Rated Load Capacity: 15,000–18,000 kg

• Static Load Testing: Conducted with weight simulations up to 1.2× the rated load

• Dynamic Road Testing: Each trailer is road-tested under real-world conditions to ensure axle alignment, suspension functionality, and braking efficiency.

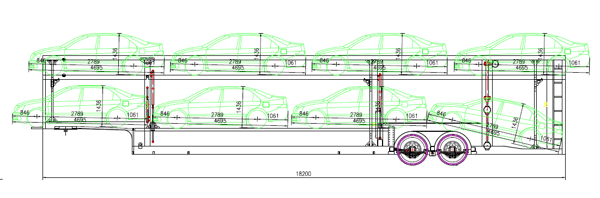

Technical Drawing

Specification

Trailer Model	Car Carrier Semi Trailer
Dimension	20500mmx2600mmx3700mm
Whole TrailerTare Weight(KG)	10000
Load capacity	8 units
Axle Brand	13Ton ZW brand
Axle Number	2
Suspension system	Common Mechanical Suspension
Steel Spring	10/10 leaf spring suspension
Steel Plate	Floor plate: 8 mm; Side plate:6 mm,
Tire Type and quantity	315/80 R22.5 8units Chinese brand
Traction Pin	50mm (2’’) or 90mm (3.5’’)
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard unit
Landing Gear	28ton, two speed
Brake system	Dual Line braking system, with ABS
Brake air chamber	Four big chamber
