60 Ton Cargo Flatbed Trailer with ladder
China semi trailer manufacturer for Middle East

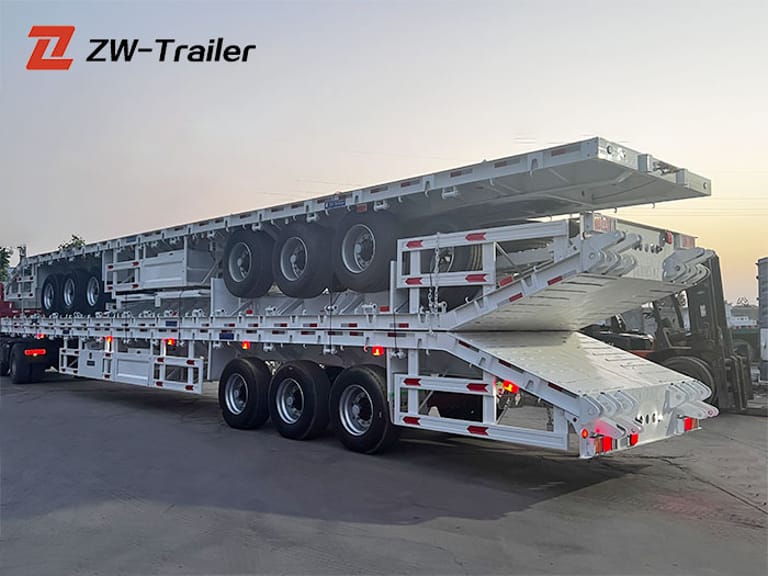

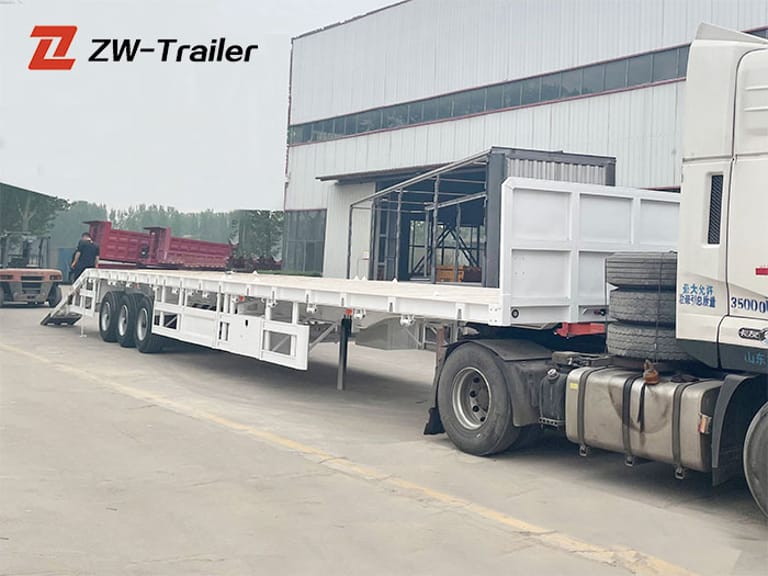

3 Axle 60 Ton Flatbed Semi Trailer with Access Ladder
Engineered for Loads and Durability – Your Partner in Heavy Cargo Transportation and Logistics Excellence.
Product Description
ZW Group Tri-Axle Flatbed Semi Trailer is the premier choice for professional transporters needing to move oversized cargo, construction materials, steel products, and ISO shipping containers with maximum efficiency and safety.
Rated for a massive 60-ton payload, this trailer boasts a reinforced platform and a specialized structure to handle the demands of challenging road conditions and continuous heavy use.

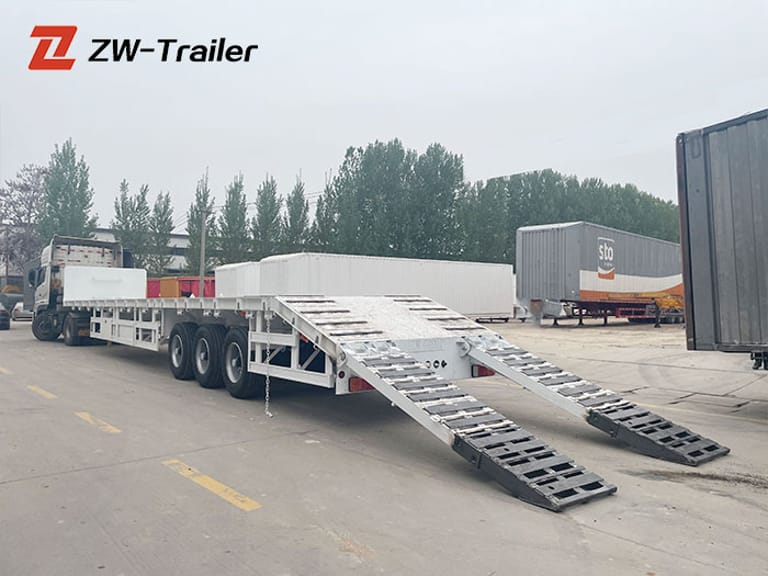

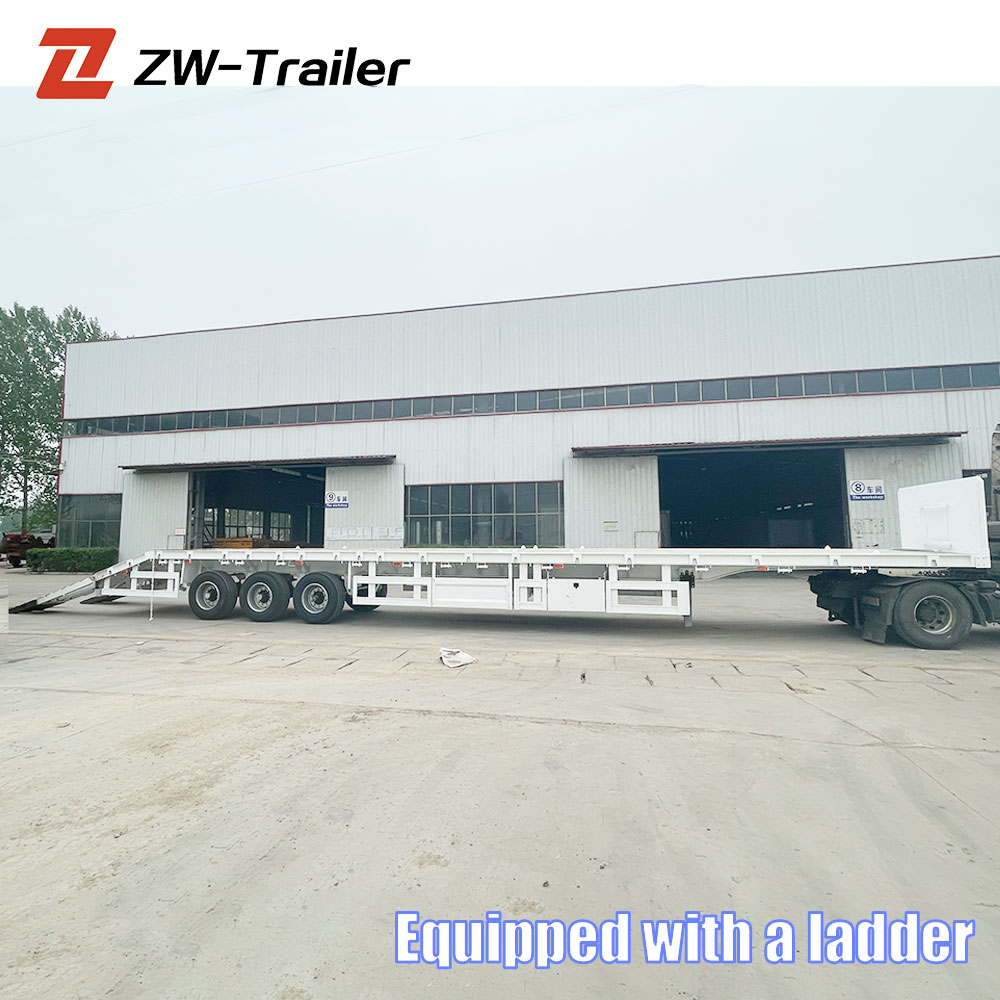

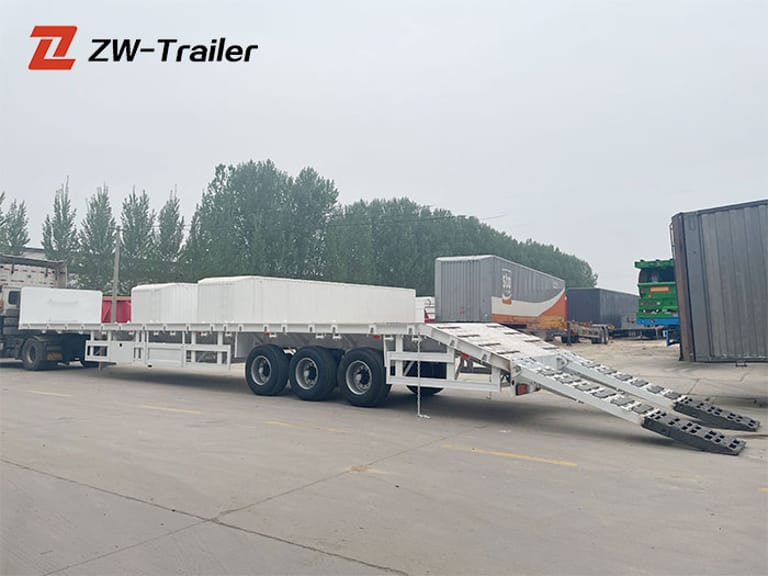

The inclusion of a robust rear access ladder enhances operational safety and convenience, providing easy access to the flat deck for cargo inspection, securing, and tarping—a critical feature for any professional hauler.
This model is your answer to finding a heavy duty 3 axle flatbed trailer price that delivers exceptional value.
Key Product Features and Technical Advantages
High-Strength Steel Chassis: Constructed from premium Q345B/T700 high-strength manganese steel, the main beam features a thickened, welded I-beam design for superior torsion and impact resistance.
Durable Paint System: The chassis undergoes a comprehensive surface treatment, including sandblasting followed by an advanced two-component anti-corrosive primer and a durable polyurethane topcoat.
High-Quality Tires & Rims: Fitted with 12 units of durable, heat-resistant 12.00R22.5 radial tires or 315/80R22.5 tires, paired with reinforced steel wheel rims for maximized grip and extended mileage.
Advanced Braking & Safety: Integrates a Dual-Line Pneumatic Braking System with a renowned WABCO or similar emergency relay valve for rapid, reliable stopping power.
Integrated Access Ladder: A permanently mounted or retractable heavy-duty steel ladder is strategically placed for safe, easy, and OSHA-compliant access to the trailer deck, significantly improving cargo securement and driver efficiency.
Container Locks: Standard equipped with 12 sets of ISO twist locks, providing maximum flexibility for transporting one 20ft, two 20ft, or one 40ft shipping container.
Robust Landing Gear: Features JOST or comparable 28-ton two-speed landing legs for stable parking and coupling/uncoupling operations.
Kingpin: Utilizes a standard 2-inch (50#) or 3.5-inch (90#) bolted kingpin, made from high-tensile steel for a secure connection to the tractor unit.
Product Configuration Parameters
Parameter | Specification |
Model | ZW-FB60T-3A |
Overall Dimensions (L x W x H) | Approx. 12,500 x 2,500 x 1,550 mm (Customizable) |
Max Payload | ≤60,000 kg (60 Ton) |
Tare Weight | ≈7,500−8,500 kg |
Axle Quantity | 3 (Tri-Axle) |
Axle Brand/Capacity | FUWA/BPW 13 Ton (Standard) |
Suspension | Mechanical/Heavy-Duty Leaf Spring (Optional: Airbag) |
Tire Specification | 12.00R22.5 or 315/80R22.5 |
Main Beam Material | Q345B / T700 High-Strength Steel |
King Pin | 2” (50#) / 3.5” (90#) Bolted Type |
Brake System | Dual-Line Air Brake with WABCO Relay Valve |
Platform Deck | 3mm or 4mm Diamond Steel Plate |
ZW Group Manufacturing Process (Quality Assurance)
Our flatbed semi trailers are built in an ISO-certified facility following a rigorous multi-stage manufacturing protocol:
Material Sourcing: Only certified high-strength steel is used.
CNC Plasma Cutting: Precision-engineered components are cut to exact specifications.
Automatic Submerged Arc Welding: Main beams and cross members are welded using advanced automatic welding technology for deep penetration and uniform strength. This guarantees the integrity of our High-strength steel flatbed trailer 60T.
Chassis Alignment: The finished frame is placed on a correction platform to ensure perfect alignment and geometry.
Surface Preparation (Sandblasting): The entire chassis is thoroughly sandblasted to remove impurities, ensuring optimal paint adhesion.
Painting: Application of the multi-layer, anti-rust paint system in a dust-free paint booth, using anti-corrosion paint semi trailer standards.
Component Assembly: Installation of certified axles, suspension, braking, and electrical systems.
Final Quality Control: Comprehensive inspection and testing before release.
Frequently Asked Questions
Q1: How can I get the best deal on this tri-axle flatbed trailer? A: Contact us today for your ZW Group flatbed trailer quotation. We guarantee you'll receive a competitive price when you Buy 60 ton flatbed trailer direct from factory.
Q2: Is this model suitable for African roads (or other rough terrain)? A: Absolutely. The heavy-duty mechanical suspension and reinforced chassis are specifically engineered for the challenges of poor road conditions, making it a highly reliable flatbed for African logistics and flatbed trailer Nigeria operations.
Q3: What makes this flatbed different from others on the market? A: It's the inclusion of the rear access ladder for safety, the use of superior T700 high-strength steel, and the proven performance of the Tri axle flatbed trailer with container locks that set us apart.
Q4: Do you offer financing or after-sales support? A: We offer reliable after-sales support and spare parts service globally. Please inquire about available payment and financing options during the quotation process.
Q5: What is the estimated lead time for a new order? A: Standard production time is typically 20-30 working days after deposit. Contact us for precise lead times for your specific needs, particularly for semi trailer export to Africa.
